Fredrickson Kiln : 4 1/2' Front-Loading Electric Kiln

Regular price $12,200.00
Unit price
per
SKU : FR412
Power
240 or 208 V
Size
Medium studio
Loading
Front-loading
Made for
Pottery
What you get
Kiln only
Free Shipping Eligible on Orders Over $89
Availability

Shipping calculated at checkout.
  • Free ShippingLower 48 · orders $89+
  • Free InsuranceEvery order covered to your door
  • Kiln Experts on StaffCall 888-774-2529
  • Since 194680 years serving potters

FREDRICKSON FRONT-LOADING COMMERCIAL ELECTRIC KILN: FR412:

☎︎Call us to speak to one of our kiln expertsLet us help guide you to the right kiln for your needs!(888) 774-2529We are available 8:30 – 5:00 ESTLeave a message after hours with name, number, and the best time for us to call you back.Sheffield Pottery · Since 1946

4 1/2' KILN with Bartlett Controller

INCLUDED:

  • Stainless steel door skin to resist corrosion :
  • Solid state relays are now standard. Solid state relays have a very long life and do not have the environmental hazards of traditional mercury relays.
  • Fredrickson kiln are all now equipped with Bartlett Genesis controller.
  • Now included over-temp safety relays
  • Fredrickson kiln are all equipped with a multi-zone Bartlett controller.

Frederickson KilnsFredrickson Kilns are heavy duty commercial grade production kilns.
We offer their complete line and custom versions of these kilns.
Please call us toll-free to discuss your needs at 888.spi.clay.
FREDRICKSON FRONT LOADING COMMERCIAL ELECTRIC KILNS are built to your specifications; for your process, temperature, load, physical size, and specific studio needs. Fredrickson craftsmen are versatile, building kilns for industry as well as artists.
Note:
Kilns with interiors less than 32" will have 2 zones.
Kilns with interiors more than 32" will have 3 zones.
Kilns with 480V/3PH wiring may have two or three zones depending on variables other than just size.

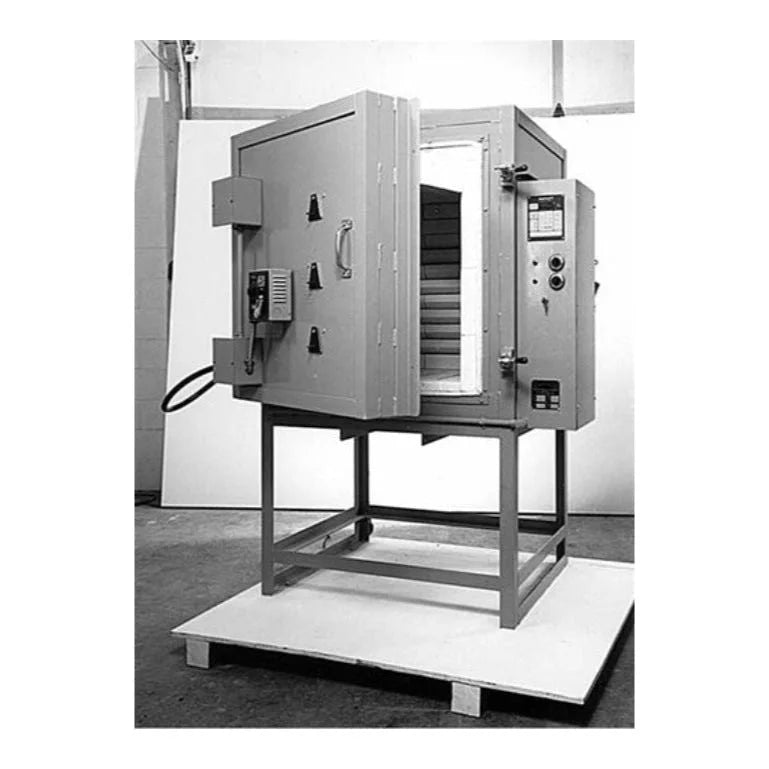

Note: Pictures show kilns with infinite switches which are no longer used on this kilns.
*Note: Car kilns exterior height is interior height plus 40 inches

Cubic Ft Interior (W D H) Exterior (W D H) Smallest Dim Ship Wt (lbs) Electrical (Amps)
W D H W D H 240V 1P 240V 3P 208V 1P 208V 3P
4 1/2 20 20 20 44 37 68 1/2 31 1/2 1600 48 (4) 20 (3) 42 (4) 18 (3)
5 3/4 20 20 25 44 37 68 1/2 31 1/2 1800 60 (5) 42 (6) 52 (5) 36 (6)
8 24 24 24 48 41 70 1/2 35 1/2 2000 72 (6) 42 (6) 63 (6) 36 (6)
10 1/2 24 24 32 48 41 72 1/2 35 1/2 2100 72 (6) 42 (6) 63 (6) 36 (6)
11 27 27 27 51 44 72 1/2 38 1/2 2200 72 (6) 42 (6) 63 (6) 36 (6)
12 24 24 36 48 41 72 1/2 35 1/2 2200 72 (6) 63 (9) 84 (8) 54 (9)
15 27 27 36 51 44 72 1/2 38 1/2 2400 96 (8) 63 (9) 84 (8) 54 (9)
16 24 24 48 50 43 75 1/4 35 1/2 2400 144 (12) 84 (12) 125 (12) 72 (12)
20 27 27 48 51 44 75 1/4 38 1/2 2600 144 (12) 84 (12) 125 (12) 72 (12)
27 36 36 36 60 53 72 1/2 47 1/2 3000 144 (12) 84 (12) 125 (12) 90 (15)
28 32 32 48 56 49 75 1/4 43 1/2 3200 144 (12) 84 (12) 125 (12) 90 (15)

*Number in parentheses denotes number of elements.



fredrickson kiln heavy duty door latch----fredrickson kiln heavy duty hinge



STANDARD FEATURES
  • Multi-Zone Digital Controller
  • Solid State Relays
  • 7” Insulating Refractory
  • 1/4” Angle Steel Frames
  • Replaceable Door Seal
  • Adjustable Door Hinges
  • Adjustable Door Clamps
  • Kanthal A-1 Elements
  • Electric Box Cooling Fan
  • Mercury Displacement Relays
  • Door Activated Shut Off
  • Arch Roof with Cast Backup
  • 2400 Degree Refractory
OPTIONAL FEATURES
  • Kiln Sitters
  • Kiln Vent Systems
  • 480 Volt Systems
  • Separate Stands
  • Casters
  • Lifting Rings
  • Remote Mount Control Panel
  • Shuttle Kilns
  • Top Loaders
