Easy-Fire Kilns L&L Kilns:

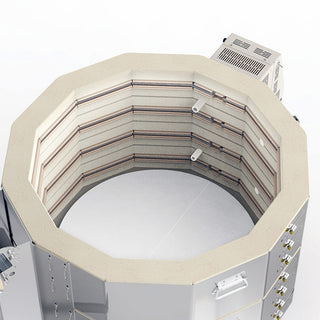

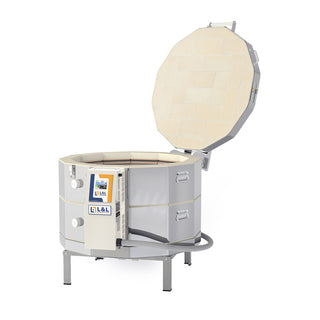

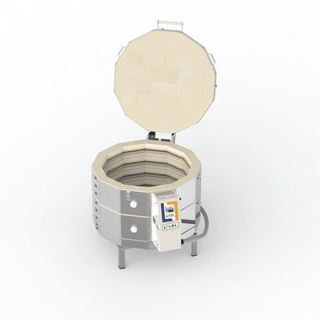

L&L E28S-3 EASY FIRE KILN
The E28S is a short and wide kiln making it perfect for platters and other shorter and flatter projects. The lower height makes it easy to load but still gives you nearly 7 cubic feet of space ! The 28' L&L Easy-Fire kilns all include 3" brick for better insulation and lower firing costs.
The easy-fire kiln meets the needs of teachers, institutions, camps, hobbyists, potters and others who need an easy to operate, easy to set up, easy to maintain, easy to understand, and easy to buy kiln. It has L&L’s robust and time-proven technology like ceramic element holders, industrial-grade element terminals, ceramic thermocouple protection tubes, heavy-duty elements, corrosion resistant materials, “Easy-Open, Easy-Load” spring hinge, removable control panel and zone control with four “Easy-Fire” programs. Get everything you need for one easy price.
Note: The prices shown above in "Choose your options" for Furniture kit and Vent are also 25% Off Retail Price ! Use the check boxes and the update price button above to tune your package to fit your budget.
Specifications and Features
Features
- Internal Size: 28" diam x 18" high
- Cubic Feet:6.8
- Number of Sections:Two
- Brick: 3" of premium select K23
- Outside Dimensions: 40'' wide x 32'' high x 50'' deep
- Recommended Floor Space: 60'' wide by 60'' deep
- Max Temp: 2350F, 1287C, Cone 10
- Control: DynaTrol with Dynamic Zone Control, 4 preset programs, 6 user defined programs
- Thermocouples: Two Heavy-duty 8 gauge with industrial ceramic protection tubes
- Hinge: Easy-Lift, Easy-Load Spring Hinge
- Stand: Full Support Aluminized stand
- Control Panel Mount: Piggybacked on insulated terminal box
- Power Hook Up: Single phase only. Gets a 50 amp 6-50P cord
- Three Year Warranty
TEMPERATURE RATING: Cone 10
INSIDE DIMENSIONS: 28'' diameter by 18'' high with 3'' brick, 6.8 cubic feet
OUTSIDE DIMENSIONS: 40'' wide x 32'' high x 50'' deep
RECOMMENDED FLOOR SPACE: 60'' wide by 60'' deep
ENERGY, TIME AND FIRING COSTS: Typical heat up to
Cone 6 with a 85 pound load and with Vent-Sure on at
240 Volt/single phase is 6 hours, 52 kW hours, $5.20 @
10 cents per kW hour.
SHIPPING WEIGHT:375 pounds for kiln. 400 pounds for
kiln with vent. 475 pounds for kiln with furniture kit.
500 pounds for kiln with vent and kit. Shipping class 85.
SHIPPING DIMENSIONS: 48'' by 44'' by 47'' high (with Furniture Kit.)
Optional Vent Sure System
By mounting the fan assembly away from the kiln L&L ensures the safety of the vent, keeps the vibration of the motor away from the kiln and ceramic ware, and keeps the heat of the kiln away from the fan motor for long trouble-free life. The fumes can’t get pushed out into your room through a leak in the duct. The patented downdraft technology from Orton improves kiln uniformity and improves glaze color. easyfire kilns and the Vent-Sure vent system are c-UL-us listed.
