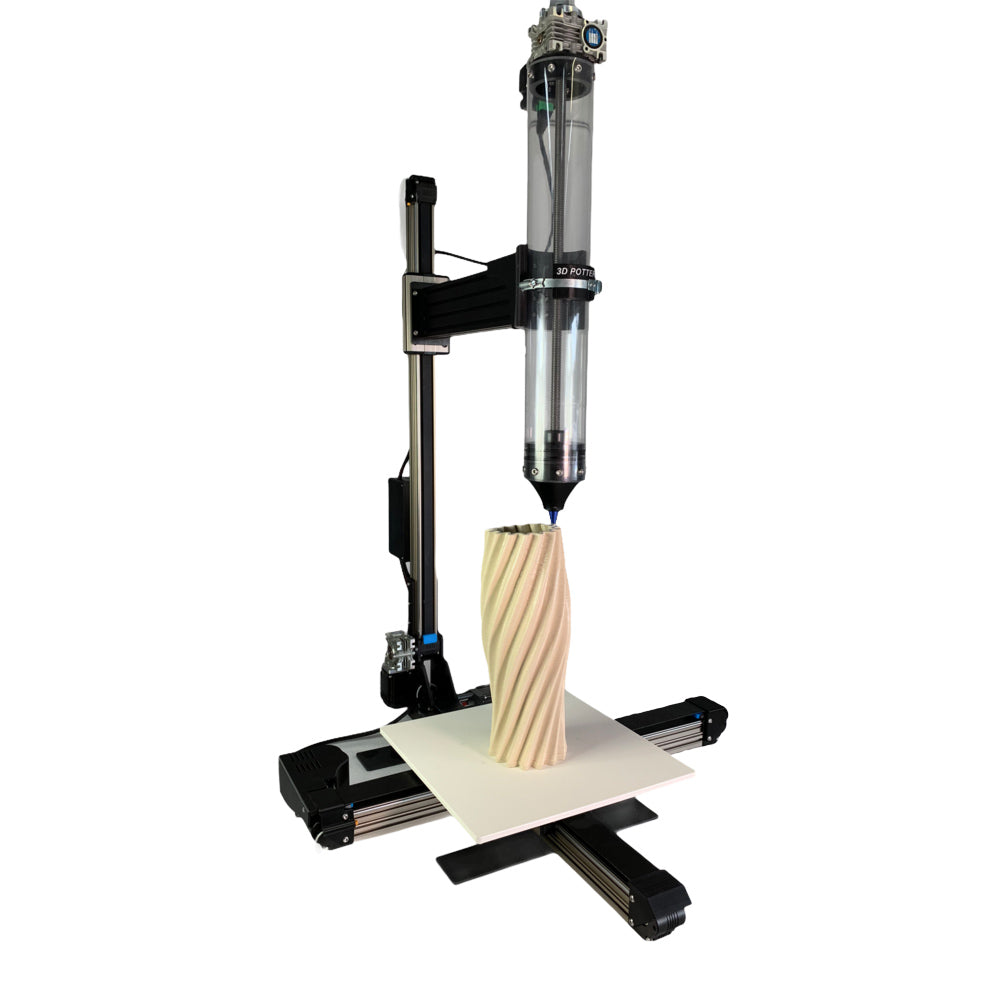

3d potterbot 10 xl is a 3d ceramic printer for clay and other soft materials.
The 3d potterbot 10 xl is our largest cartesian cardinal rail axis printer. It uses our strongest motors and has 30% more printing area than our standard size model, allowing for even more creative designs.
Base model is 3600ml. Or choose to upgrade to 4000ml

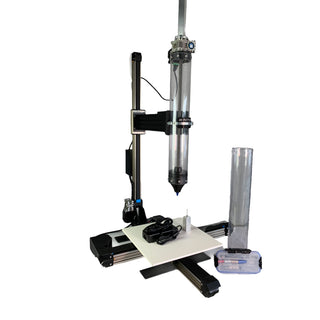

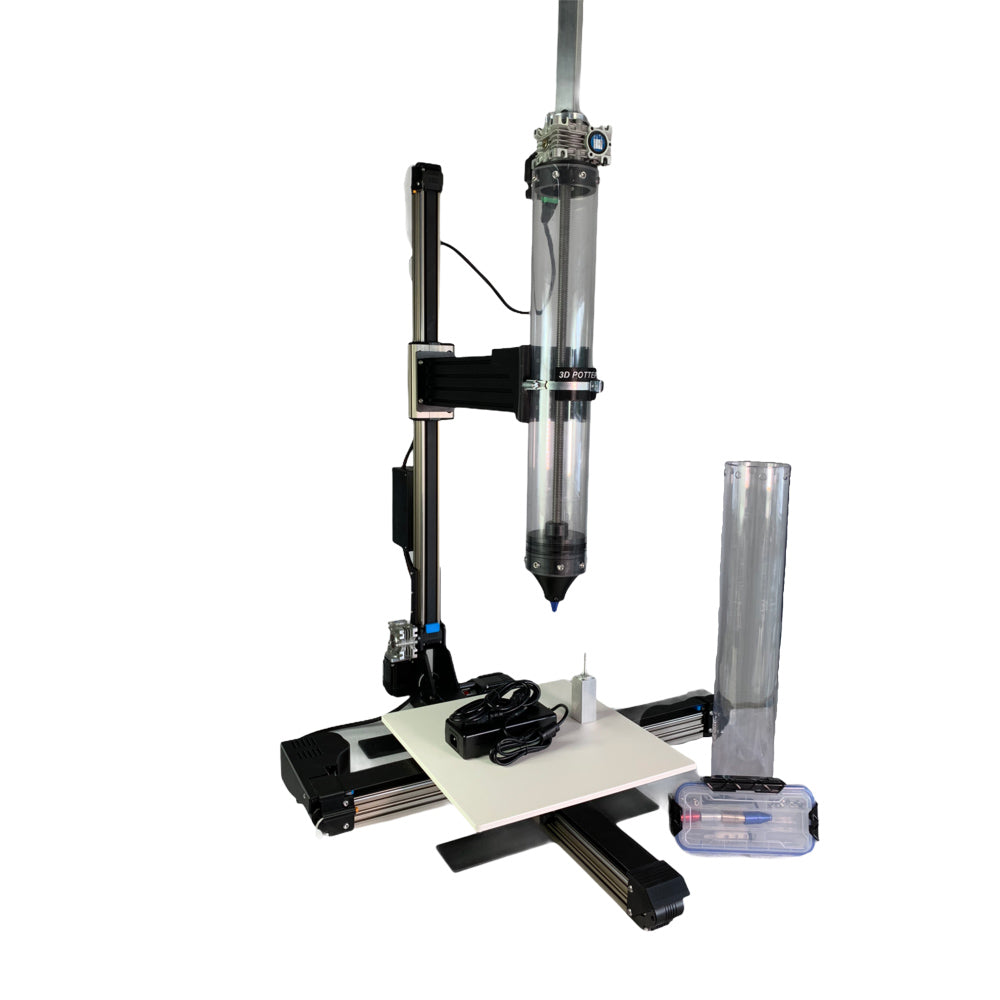

What's included:
- 3d potterbot 10 xl
- Closed loop stepper on x, y, z, extruder
- 3600ml or 4000ml extruder, 2 tubes
- 4 anodized aluminum nozzles (standard sizes: 3, 4, 5, and 6mm)
- Parts box: alan key set, grease, acme driver tool, tie wraps, extra screws
- Power supply
- Wall mount bracket
Specifications
printing envelope:
x-19.3" (490 mm)
y-19.3" (490 mm)
z-28" (710 mm)
Printer size:
w-32” l-40” h-47”
normal operation space needed 3600ml: w-32” l-40” h-82”
normal operation space needed 4000ml: w-32” l-40” h-85”
maximum operation space needed: w-35” l-42” h-89”
bat size (printer bed): 15x15in” (381x381mm)
height to the top of the extruder fully extended is 89” (2260mm)
weight with extruder: 60 lbs.
Recommended print speed: 1.1”/s’ to 7.9’’/s (30 to 200 mm/s)
maximum print speed: 7.9in”/s (200mm/s)
power supply: output - 24v 10 amps, input - 100-240v, 50-60 hertz.
Power consumption: 24v ~6 amps, ~144 watts
main controller board running duet3d with atmel sam4e8e: 120mhz arm cortex-m4
Full control through web interface, no apps or software installation. Non-wifi versions are available, please contact us if you would like this type of connection (ethernet connection).
3d potter printers use high quality anodized aluminum rails. These rails are robust and have a smooth surface, allowing for easy movement of parts while being able to withstand classroom or industrial environments.
The unique feature of our 3d ceramic printers is the direct extrusion of real clay. Other brands use a compressed air system printing slip (watered down clay or alcohol diluted clay). The advantage of direct extrusion is 3d printing full body clay, or other paste-like materials. All materials used to build our clay printers are food grade, so get creative.
We keep improving our designs. The 10th generation brings a new wireless feature with a full web interface controlled over wifi. You can now control and upload files to the printer from multiple devices simultaneously. The interface allows you full control over every setting of the machine. Interface preview instructions video below.
The 10th gen has a new uniform nozzle design for improved performance, across all of our printers. This allows you to interchange nozzles between all of our 3d clay printers, from the micro to the scara v4.
Do you need special clay to 3d print?
The advantage of direct extrusion is printing full-body clays or other paste-like materials. All materials used to build our printers are food-grade, so get creative!
Take your favorite pottery clay and wet it so that it is too wet to throw and you are ready to go. You will want to experiment with the wetness level to get it to print correctly for your projects.
3d potter 3d clay printer web interface
3D Potterbot Ceramic Printer Comparison Chart
| Micro 10 | 10 Pro | Super 10 | 10 XL | Scara Standard | Scara Elite | Scara Heavy Duty | |
| X-Y-Z Build Volume (in/mm) *(in) rounded to closest integer* | 10” x 10” x 12” 280 x 265 x 305 |
16” x 16” x 20” 415 x 405 x 500 |
16” x 16” x 20” 415 x 405 x 500 |
19” x 19” x 28” 490 x 490 x 710 |
72” Dia. x 42” Z 1829 Dia. x 1143 Z |
112” Dia. x 68” Z 2845 Dia. x 2134 Z |
144” Dia. x 108” Z 3658 Dia. x 2743 Z |
| Extruder Capacity | 1000ml | 2000ml | 3600ml | 3600/4000ml | 3600ml | 4000ml | Continuous Pump* |
| Continuous Flow Available | X | X | X | X | √ | √ | √ |
| Printing Speed (in/mm)/Second | 1.1”-2.4”/s 30mm-60mm/s |
1.1”-7.9”/s 30mm-200mm/s |
1.1”-7.9”/s 30mm-200mm/s |
1.1”-7.9”/s 30mm-200mm/s |
1.2” - 3.9”/s 30mm - 100mm/s |
1.2” - 3.9”/s 30mm - 100mm/s |
1.2” - 3.9”/s 30mm - 100mm/s |
| Nozzle Size | 1mm - 10mm | 1mm - 10mm | 1mm - 10mm | 1mm - 10mm | 1mm - 10mm | 6mm - 2" | 6mm - 2" |
| Motor Types | Steppers | Hybrid Closed Loop Steppers | Hybrid Closed Loop Steppers | Hybrid Closed Loop Steppers | Hybrid Closed Loop Steppers | Hybrid Closed Loop Steppers | Hybrid Closed Loop Steppers |
| Easy Maintence | √ | √ | √ | √ | √ | √ | √ |
| Real Clay | √ | √ | √ | √ | √ | √ | √ |
| Wifi Enabled | √ | √ | √ | √ | √ | √ | √ |
| Web Browser Interface | √ | √ | √ | √ | √ | √ | √ |
| Universal CAD Capabilities | √ | √ | √ | √ | √ | √ | √ |
| Direct Extrusion (No Air Compressor) | √ | √ | √ | √ | √ | √ | √ |
| Multiple Object Printing | √ | √ | √ | √ | √ | √ | √ |
| Industrial Grade | √ | √ | √ | √ | √ | √ | √ |
| Retracting Capable | X | √ | √ | √ | √ | √ | √ |
| Concrete Printing | X | X | X | X | √ | √ | √ |
| 360° Degree Printing | X | X | X | X | √ | √ | √ |
