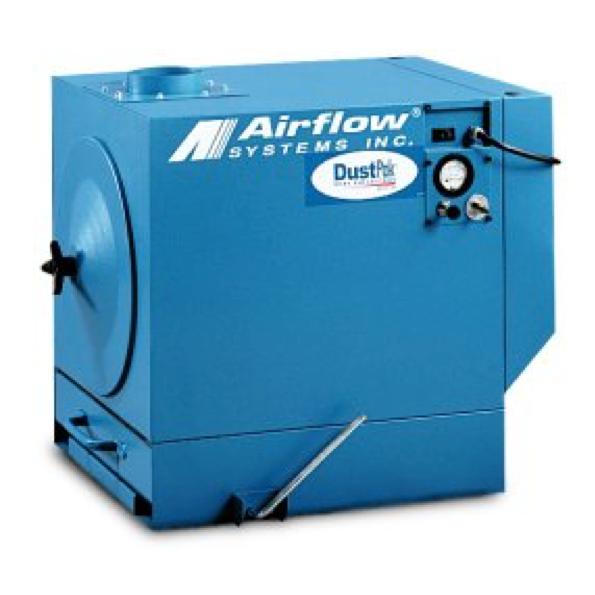

Airflow Systems DCH-1 Dust Collector

Airflow Systems DCH-1 Dust Collector

Airflow Systems DCH-1 Dust Collector is an industrial quality free standing dust collector.
This unit does not include ducting and hood which can easily be added with off-the-shelf components!

Features & Benefits
Complete, self-contained unit: Economical; immediately functional. Just add your own ducting and hood.
Direct-Drive Blowers: Higher static pressure, longer filter life and greater reliability; spark resistant; no belts or pulleys to replace.
Non-electrostatic operation: High reliability, low maintenance.
Ultra-Seal® filter mounting: Eliminates contaminant bypass of filters.
Vibra-Pulse® Filter Cleaning System: Cleans filters 75% more effectively than reverse pulse systems.
Low profile cabinet: Easy access speeds filter change-out and maintenance.
Dust Drawer: Easily remove external dust drawer with positive level lock.

Specifications
Construction: 12/14/16 ga. welded steel, powder coated cabinet
Blower Pkgs (HP): 1.0, 1.5
Noise Level (dBA): 71/74
Electrical: 1.0 HP - 115/1/60, 12 amps, std.; 1.5 HP - 115/230/1/60, 15/7.5 amps, opt.; 1.5 HP - 208-230/460/3/60, 4.9-4.6/23; amps, opt.

Dimensions
Width: 26.00”
Height: 28.00” (54.25" with Hopper)
Depth: 34.25”

Optional Upgrades : Call for pricing
Pressure Gauge Kit: Indicates when filters require cleaning.
Automatic Filter Cleaning: Vibra-Pulse® system cleans automatically when unit is shut off.
HEPA High Efficiency After-Filter: Provides 99.97% filtration efficiency.
Adsorption Module: Charcoal after-filter removes gases and odors.
Custom Cartridge Media: For specific applications.
Hopper with Floor Stand: 10 gallon container.
Compressed Air Regulator
Casters: 5" casters and 8" wheels for portability.
