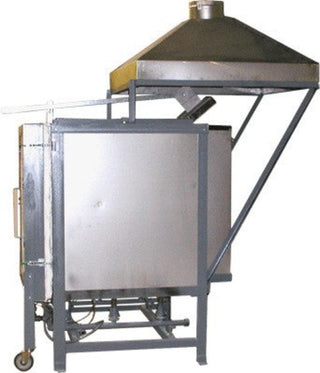

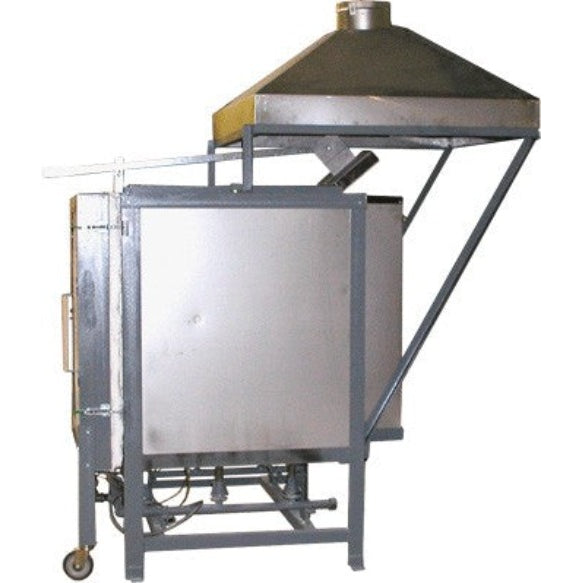

OLYMPIC DD12 KILN (DOWNDRAFT KILN Gas or Propane)
Please call for special discount pricing of the Olympic Downdraft Kiln with gas or propane.
We also offer professional delivery kilns with our Cargo Master Crane System.
Downdraft 12 cubic feet gas kiln with or without vent hood
Model - DD12 w Hood/Brick/ Propane or Natural Gas
Inside Dimensions: (setting area for firing pieces) 27" wide x 28" deep x 31" high, fires to cone 10/2350°F, brick or fiber construction.
Model comes with frame welded to firing chamber, two peephole plugs, instruction manual, and warranty card. Vents are palletized separately from kiln. One-year warranty.
Olympic Down Draft kilns can be built of brick or fiber. The frame of the DownDraft is made of heavy angle iron and 1" thick steel tubing. We've thickened both the brick and fiber insulation which is now backed with an 1" airs pace created by the square tubing between the stainless steel jacket and the insulation. Four and one half inches of brick and 1" ceramic fiberboard insulate the brick Down Drafts, and three inches of fiber with 1" ceramic fiberboard insulate the fiber DownDrafts. We've added air space with the metal tubing to the doors of the fiber and brick DownDrafts to enhance the kiln's strength and efficiency. Additionally, the air space results in a cooler outer surface and a thicker kiln door. Fiber and brick DownDrafts are built with double insulated floors, consisting of brick and ceramic fiberboard. The additional strength and insulation enables the kiln to fire at high temperatures, and to maintain temperatures without damage or deterioration. Efficient venturi burners are used on the Down Draft kilns with an option for blower burners if desired.
These models can be made as a car kiln, add 25%.
OLYMPIC DD12 KILN (DOWNDRAFT KILN Gas or Propane)
Please call for special discount pricing of the Olympic Downdraft Kiln with gas or propane.
We also offer professional delivery kilns with our Cargo Master Crane System.
Downdraft 12 cubic feet gas kiln with or without vent hood
Model - DD12 w Hood/Brick/ Propane or Natural Gas
Inside Dimensions: (setting area for firing pieces) 27" wide x 28" deep x 31" high, fires to cone 10/2350°F, brick or fiber construction.
Model comes with frame welded to firing chamber, two peephole plugs, instruction manual, and warranty card. Vents are palletized separately from kiln. One-year warranty.
Olympic Down Draft kilns can be built of brick or fiber. The frame of the DownDraft is made of heavy angle iron and 1" thick steel tubing. We've thickened both the brick and fiber insulation which is now backed with an 1" airs pace created by the square tubing between the stainless steel jacket and the insulation. Four and one half inches of brick and 1" ceramic fiberboard insulate the brick Down Drafts, and three inches of fiber with 1" ceramic fiberboard insulate the fiber DownDrafts. We've added air space with the metal tubing to the doors of the fiber and brick DownDrafts to enhance the kiln's strength and efficiency. Additionally, the air space results in a cooler outer surface and a thicker kiln door. Fiber and brick DownDrafts are built with double insulated floors, consisting of brick and ceramic fiberboard. The additional strength and insulation enables the kiln to fire at high temperatures, and to maintain temperatures without damage or deterioration. Efficient venturi burners are used on the Down Draft kilns with an option for blower burners if desired.These models can be made as a car kiln, add 25%.
| OLYMPIC KILNS COMMERCIAL DOWNDRAFT GAS KILNS | |||||||||||||
| Model | Inside Volume Cu. Ft. |
Setting Space Cu. Ft. |
Setting Area Inches |
InsideDimensionsInches |
Outside Dimensions *-Inches (w x d x h) |
Shelf Size | Maximum Temp | Max BTU/HR Input | Gas Line Inlet |
Orifice Size |
Orifice Size |
No. of Burners | Approximate Shipping Wt. |
| DD9 | 15 | 9.2 | 23 x 23 x 30 | 30 x 25 x 35 | 50 x 55 x 73.5 | 2-11x22x1 | Cone 10 | 120,000 | 3/4 " | Sep-64 | #40 | 3 | Brick -1,216 |
| 2350°F | Fiber – 1,194 | ||||||||||||
| DD12 | 18.75 | 12.1 | 27 x 28 x 31 | 33 x 32 x 37 | 52.5 x 62 x 75 | 2-13x26x1 | Cone 10 | 150,000 | 1 " | Sep-64 | #40 | 6 | Brick -1,525 |
| 2350°F | Fiber –1,415 | ||||||||||||
| DD14 | 21.9 | 14.5 | 29 x 28 x 31 | 35 x 32 x 37 | 54.5 x 62 x 75 | 2-14x28x1 | Cone 10 | 250,000 | 1 " | Sep-64 | #40 | 6 | Brick -1,566 |
| 2350°F | Fiber –1,481 | ||||||||||||
| DD17 | 24.8 | 17.3 | 29 x 28 x 37 | 35 x 32 x 42 | 54.5 x 62 x 80 | 2-14x28x1 | Cone 10 | 275,000 | 1 " | Sep-64 | #40 | 6 | Brick -1,613 |
| 2350°F | Fiber – 1,528 | ||||||||||||
| DD20 | 32.6 | 20.5 | 31 x 31 x 37 | 37 x 36 x 43 | 56 x 55.5 x 81 | 4-15x15x1 | Cone 10 | 300,000 | 1 " | Sep-64 | #40 | 6 | Brick -1,702 |
| 2350°F | Fiber – 1,617 | ||||||||||||
| DD24 | 37.7 | 24.6 | 32 x35 x 38 | 38 x 40 x 43 | 52 x 67 x 82 | 4-16x16x1 | Cone 10 | 350,000 | 1 " | Sep-64 | #40 | 6 | Brick -1,890 |
| 2350°F | Fiber – 1,750 | ||||||||||||
| DD30 | 44 | 30 | 36 x 36 x 40 | 42 x 41 x 47 | 61.5 x 70.5 x 86 | 4-18x18x1 | Cone 10 | 375,000 | 1 " | Sep-64 | #40 | 8 | Brick -1,951 |
| 2350°F | Fiber –1,848 | ||||||||||||
| DD40 | 53 | 40 | 41 x 41 x 41 | 46 x 46 x 48 | 64.5 x 74 x 85 | 4-20x20x1 | Cone 10 | 390,000 | 1 " | Sep-64 | #40 | 8 | Brick –2,150 |
| 2350°F | Fiber – 1,968 | ||||||||||||
