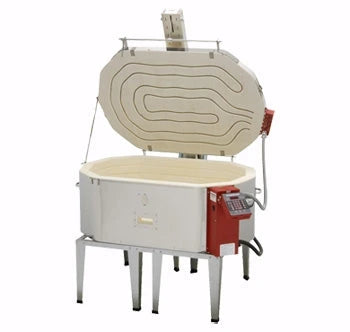

Evenheat Glass Kiln GTS 2541

Available with Solid State Quiet Drive relays

Evenheat's GTS 2541 is the original large, oval shaped kiln that continues to lead the way in performance and design.

The GTS 2541 Evenheat glass kiln features our TAP Touchscreen, Genesis Touchscreen, Rampmaster or Set-Pro controls and is standard equipped with our exclusive Swing View Adjustable Viewing, Dyna-Lift Lid Lift Assist, Wide Lid Handle and Full Stainless Jackets. Add a viewing window and full, seamless shelf to your GTS 2541 for the ultimate glass kiln.

Order the 13" deep large kiln for sale with our Quiet Drive Solid State output option for tight temperature control and longer element life.

SPECIFICATIONS
13.5" Deep Model Chamber Size
41" W x 25.25" L x 13.5" D - 7.2 cubic feet
(104.1cm Wide x 64.1cm Long x 34.3cm Deep - 204L)

North American Electrical Specifications
Operating Voltage: 240V (208V and 3 phase available)
Amperage: 40A
Watts: 9600W
Power Cord Plug Style: NEMA 6-50P

Global Electrical Specifications
Operating Voltage: 400V
Amperage: 15.7A
Watts: 10,800W

Maximum Usable Temperature: 1800°F (982°C)
Ship Weight: 280lb (127kg)

TUV listed (UL 499) United States and Canada

• Access Port (Pat. Pend.)
• Dyna-Lift Lid Lift Assist
• Multiple Control Options
• Swing View Adjustable Control
• Wide Lid Handle
• Full Stainless Jacket
• Corner Mounting Technique
• Properly Sized Stands
• 3 Position Lid Vent Option
• Large Size
• Lid Security Bar Option
• Top and Side Fire Configuration

Access Port (Pat. Pend.)

The GTS 2541 Evenheat glass kiln incorporates the new relay access port (Pat. Pend.) for simple, no-panel-off relay replacement.

Simply remove the plate to gain access to the service part. There's no need to remove or swing the entire control panel out of the way and dig into the internal wiring. It's absolutely simple and effective and all it takes is a simple screwdriver!

Dyna-Lift Lid Lift Assist

The No Damage Lift Assist

Evenheat is proud to offer our patented Dyna-Lift lid lift assist for our large kiln for sale. (Patent No. 7,984,822)

The Dyna-Lift lightens the force needed to operate the kiln lid. It does so with ease and grace and with no negative effects upon the top loading kiln itself. Hallmarks of the design include no kiln body connection, single point lifting and emphasis on allowing the lid to act naturally.

The Dyna-Lift Lid Lift Assist is the best designed, best performing lift assist available.

Multiple Control Options

Evenheat works closely with control manufacturers Bartlett Instruments and SDS Industries to bring you the best in performance, features and programming ease.

Control Options Include:

TAP Touchscreen, full featured touchscreen control with user-defined and preset programs for glass, metal clay and ceramic. Also features full-text graphics, cost per firing, and graphing along with wi-fi compatibility with web and mobile apps and more.

Genesis Touchscreen, full featured touchscreen control with user-defined and preset programs.

Rampmaster 3 (RM3), full featured control with user-defined and preset programs for glass. Features a 4 digit display.

Economical Set-Pro, 3 button control with user-defined and preset programs for glass, metal clay and ceramic. Features a 4 digit display.

Swing View Adjustable Control

The Swing View Adjustable Control is a pivoting, swing-up enclosure that allows the user to rotate the Rampmaster control to a comfortable viewing and programming angle. It's that simple. You're going to really enjoy this feature. The Swing View Adjustable Control is stock equipped on all GTS 2541's with Rampmaster control.

Wide Lid Handle

At Evenheat we love handles, we always have. Our wide lid handle illustrates this affection by offering a wide handle that's corner mounted and easy to operate, even with the gloved hand. It's unlike any other and it's a joy to use

Full Stainless Jacket

Multi-section kilns are designed to lower production costs for the kiln manufacturer. it is a worthy goal but it comes at the cost of kiln quality. It's a trade off we're not willing to make. We build our kilns with full stainless jackets from top to bottom. We build our Evenheat glass kilns with full stainless jackets from top to bottom. Full jackets mean absolutely solid, life extending construction. There are no leaks, no shifting, no buckles and no weakness. Insist on Full Stainless Jackets for true build quality.

Corner Mounting Technique

The corners of the kiln body and lid provide excellent strength for mounting. The flat sides of the kiln don't offer this strength, especially on oval shaped kilns. We install our load bearing hinge and lid handle brackets on these corners for this reason. Longer life, high reliability: solid design makes a difference with this large kiln for sale.

Properly Sized Stands

We don't design our stands to fit into our kilns for shipping. We design our stands to support our kilns in use. Our stands properly distribute the weight of the kiln and are made wide to prevent tipping or offsetting. You won't find our stands in our kilns but you'll be happy to know they're beneath them.

3 Position Lid Vent Option

The lightweight lid created by the Dyna-Lift option allows us to offer a 3 position lid vent system. Lid venting helps remove burn-off from adhesives and paints and comes in handy during the cooling process.

The 3 position lid vent is only available when used with the OPTIONAL Dyna-Lift. It is not a standard feature.

Large Size

The GTS 2541 is a fairly large kiln that fits well into private and commercial studio's. Those needing space for volume firing or want to keep their options open on piece size will appreciate the GTS 2541.

Lid Security Bar Option

Dyna-Lift equipped kilns are provided with a lid prop bar that positively keeps the lid in the open position. Simple one handed operation is made even easier with our well designed lid handle.

The Lid Security Bar is only available when used with the OPTIONAL Dyna-Lift. It is not a standard feature.

Top and Side Fire Configuration

Evenheat pioneered the top and side fire glass kiln design. Top fire is essential in glass firing as it heats the glass surface uniformly. The addition of side fire provides heat to the lower portion of the kiln which helps to reduce and eliminate bubbles.
