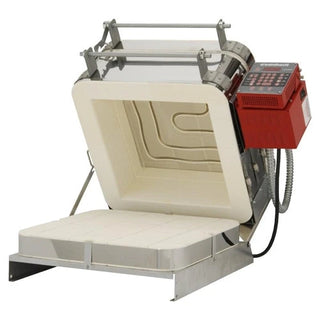

Evenheat Studio Pro 14 Glass Kiln 240 Volt
Every so often a design comes along that shatters convention. A design so unique, yet so obvious, it redefines everything. Welcome to Evenheat's Studio Pro 14
The 120V, Studio Pro 14 with its Dual Access Design, easy to use Set-Pro control and full brick construction offers both exceptional performance and entry-level price.
The Studio Pro 14 offers more in performance, design and flexibility than any other kiln in its class.
Order yours with our Quiet Drive Solid State output option for tight temperature control and longer element life.
Features
Suitability:
Like the Original Studio Pro, the design of the Studio Pro 14 was driven by the demands of glass work. Glass work is a fairly active process. It relies heavily on visual cues, opening and closing while firing, fast action and all sorts of movement. It's a lot of fun and the Studio Pro 14 only adds to the enjoyment. It doesn't hinder, compromise or get in the way. It just works well.
The Studio Pro 14 also works very well in the more traditional firing styles such as metal clays, low fire ceramics, enamels and china painting. While not as active as glass, these types of firings do require a kiln that's properly designed and built for use. Since the Studio Pro 14 is an Evenheat design, you know you're getting that as well.
The Studio Pro 14 will fire any ware up to 1650°F (900°C)
(Shown Above with 3 key controller: you can select the upgrade to the Rampmaster 12 Key Upgrade as shown left)
The Rampmaster w/ Express Mode was designed exclusively for glass work. Express Mode offers an easy, 3 step programming process. Simply key in your glass COE, firing style and firing speed to create the firing program. It's quick, it's easy and it's accurate.
The Rampmaster with Express Mode also features many single key features like Skip Ahead, Add Time, Add Temp and Alarm. Of course the Rampmaster continues to offer Custom Mode programming for full artistic control. The Rampmaster with Express Mode has set a new standard for glass kiln design and control.
You may also choose the Bartlett Genesis Touch Screen Controller or the state of the art TAP Touchscreen Controller.
Specifications
Chamber Size
14.5" W x 14.5" L x 6.5" D - .80 cubic feet
(37cm W x 37cm L x 16.5cm D - 22.7L)
North American Electrical Specifications
Operating Voltage: 240V
Maximum Usable Temperature: 1650°F (900°C)
Ship Weight: 120lb (55kg)
TUV listed (UL 499) United States and Canada
- Front Access
- Access Port (Pat. Pend.)
- Top Access
- Wonderful Handles
- Wall-Free Design
- Set-Pro with Express Mode
- Multi-Position Lid Vent
- Engineered Element Path
- Corner Mounting Technique
- Bench Top Operation
- Floor Stand Included
- Power Cord Exits to Rear
Front Access
Front access is perfect for glass placement, particularly with glass that can't be disturbed once placed. Simply build on your shelf and close the chamber. Front access is also great when using manipulation tools that require a horizontal approach such as raking or glass roll ups.
Access Port (Pat. Pend.)
The Studio Pro 14 STP incorporates Evenheat's new relay access port (Pat. Pend.) for simple, no-panel-off relay replacement.
Simply remove the plate to gain access to the service part. There's no need to remove or swing the entire control panel out of the way and dig into the internal wiring. It's absolutely simple and effective and all it takes is a simple screwdriver!
Top Access
Top access is excellent for venting. Top access also works very well when loading forms and comes in very handy when using manipulation tools that require a vertical approach such as glass embossing.
Wonderful Handles
We've fitted the Studio Pro 14 with two wonderfully wide and sturdy bar handles. These corner mounted handles are placed well away from the kiln for easy operation. You'll enjoy using them.
If you're familiar with Evenheat you know we love handles. Handles provide access and they should be designed for the job, be comfortable and easy to use.
Wall-Free Design
With front access, the Studio Pro 14 offers the artist a wall-free work surface. The wall-free design provides wide open space for the precision placement of your glass. There's nothing to fight or work around. it is an incredible design feature that essentially defines the Studio Pro 14.
Set-Pro with Express Mode
The Set-Pro is our economical, 3 button control and features Express Mode and Custom programming along with the traditional 4 digit display.
The Set-Pro with Express Mode allows you to select pre-loaded programs in a quick and easy style. For more advanced firing, the Set-Pro also allows you to define all the firing details using the Custom Mode. Whether you're a beginner or seasoned veteran the Set-Pro with Express Mode has you covered with features and reliable operation.
"On-the-Fly" features allow you to add time and temperature to your holds along with a skip ahead feature.
The Set-Pro control will work with our Quiet Drive Solid State Relay System.
Multi-Position Lid Vent
The Studio Pro 14 is fitted with a 2 position lid vent. Lid venting is great when you're firing off adhesives or binders. it is also great for speeding up the cooling process. The lid vent on the Studio Pro 14 positions the lid at approximately 1" and 1-3/4".
Engineered Element Path
The heating element path is designed specifically for the Studio Pro 14 firing chamber and provides even heating across the entire firing surface.
We design all of our element paths for performance. it is a detail you expect from Evenheat.
Corner Mounting Technique
The corners of the kiln body and lid provide excellent strength for mounting. The flat sides of the kiln don't offer this strength, especially on square shaped kilns. We install our load bearing hinge, lid vent and lid handle brackets on these corners for this reason. Longer life, high reliability: solid design makes a difference.
Bench Top Operation
The Studio Pro 14 is designed to be placed directly on your counter or bench top or within the included floor stand. The choice is yours.
Bench top operation positions the kiln at waist level for very comfortable front access use.
Please note that counters and bench tops must be constructed of non-combustible material.
The Studio Pro 14 is supplied with a 16" stand for optional floor placement if desired. Floor stand operation positions the kiln perfectly for top access.
Power Cord Exits to Rear
The power cable on the Studio Pro 14 exits the control panel to the rear. This keeps it away from the kiln chamber while keeping your work area free of clutterCUSTOMER REVIEWS
