Evenheat Glass Kiln Studio Pro 24

Evenheat Glass Kiln Studio Pro 24 Glass Kiln

Redesigned!
Now includes solid State relays and Icon + Genesis wifi enabled, touch screen controller.

The Evenheat Studio Pro 24 builds on Evenheat's Dual Access Design and offers the glass artist a large studio kiln uniquely designed for full, unrestricted access.


Available Upgrade to the new TAP : Touchscreen Controller:

TAP Touch Screen Kiln Controller

The TAP Controller features a touchscreen design that offers a large screen with full text . All commands and menu items are legible, easy to read and easy to operate. Simply respond to the screen with a touch!

The TAP Controller is supplied pre-loaded with firing schedules as well as allowing the artist to create and store their own custom programs.

On-the-fly features such as adding time to a hold, adding temperature to a hold and skipping ahead are available and easy to use.

The TAP Controller allows for wi-fi connection via our well placed USB and ethernet ports. This connectivity allows the artist to monitor the kiln, develop and edit programs and perform TAP Controller functions from a networked computer, tablet or mobile device. Web based apps are expected to be available Dec. 2015.

Touchscreen technology offers many improvements and Evenheat is dedicated to providing this technology to our customers.

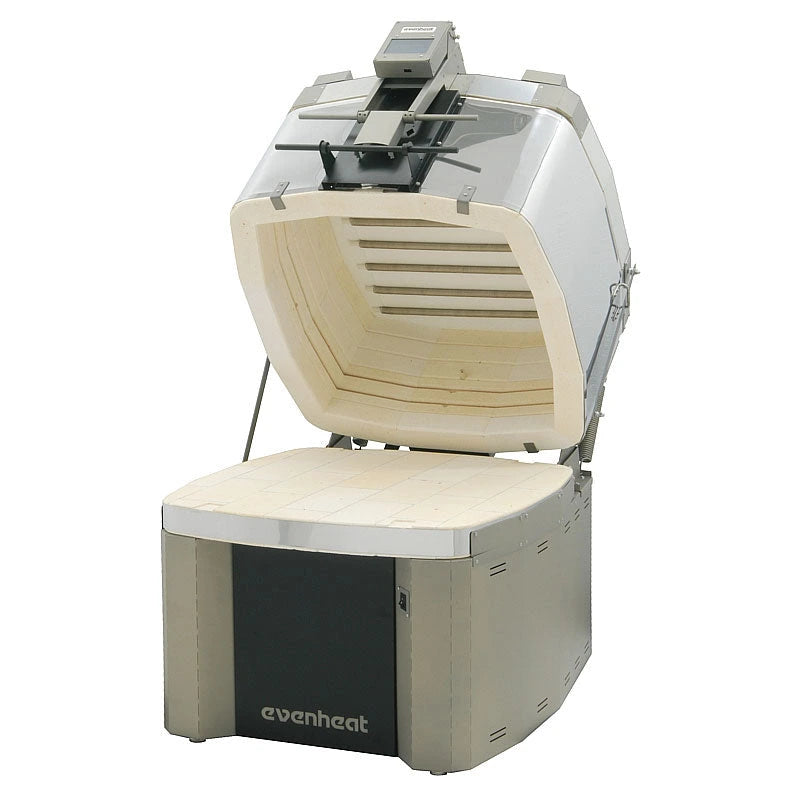

The Evenheat Studio Pro 24 features front and top access, wonderfully large handles and lift assist all wrapped up in a well engineered design.
All Studio Pro 24 Features

• Front Access
• Top Access
• Wall-Free Design
• Wonderful Handles
• Fiber Lid Construction
• Spring Assist Lift
• Stout Hinge Design
• Corner Mounting Technique
• Swing View Adjustable Control
• Power Interrupt Switch
• Well Designed Stand

Like the Original Studio Pro, the design of the Studio Pro 24 was driven by the demands of glass work. Glass work is a fairly active process. It relies heavily on visual cues, opening and closing while firing, fast action and all sorts of movement. It's a lot of fun and the Evenheat Studio Pro 24 only adds to the enjoyment. It doesn't hinder, compromise or get in the way. This large studio kiln just works well.

The Studio Pro 24 also works very well in the more traditional firing styles such as metal clays, low fire ceramics, enamels and china painting. While not as active as glass, these types of firings do require a kiln that's properly designed and built for use. Since the Studio Pro 24 is an Evenheat design, you know you're getting that as well.

The Evenheat Studio Pro 24 will fire any ware up to 1800°F (982°C).
Chamber Size
24" W x 24" L x 13.5" D - 4.2 cubic feet
(61cm W x 61cm L x 34.3cm D - 119L)

Outside Kiln Dimensions
38" Wide x 38.25" Deep x 39" Tall (96.5cm Wide x 97cm Deep x 99cm Tall)

Available Electrical Designs
Single Phase

Operating Voltage: 240Vac
Amperage: 32A
Wattage: 7680W
Hertz: 50-60hz
Power Cord Plug Style: NEMA 6-50P

Operating Voltage: 208Vac
Amperage: 37A
Wattage: 7675W
Hertz: 50-60hz
Power Cord Plug Style: NEMA 6-50P

3 Phase Delta (Typical North American 3 Phase)

Operating Voltage: 240Vac, 3 Phase Delta
Amperage: 19A
Wattage: 7680W
Hertz: 50-60hz
Power Cord Style: Direct Wire

Operating Voltage: 208Vac, 3 Phase Delta
Amperage: 22A
Wattage: 7675W
Hertz: 50-60hz
Power Cord Style: Direct Wire

3 Phase Y (Typical Global 3 Phase)
Operating Voltage: 380Vac (220Vac Mains)
Amperage: 10.1A
Wattage: 6446W
Hertz: 50-60hz
Power Cord Style: Direct Wire
unbalanced load

Operating Voltage: 400Vac (230Vac Mains)
Amperage: 10.5A
Wattage: 7061W
Hertz: 50-60hz
Power Cord Style: Direct Wire
unbalanced load

Operating Voltage: 415Vac (240Vac Mains)
Amperage: 11A
Wattage: 7680W
Hertz: 50-60hz
Power Cord Style: Direct Wire
unbalanced load

Maximum Usable Temperature: 1800°F (982°C)

Ship Weight: 280lb (127kg)
TUV listed (UL 499) United States and Canada
