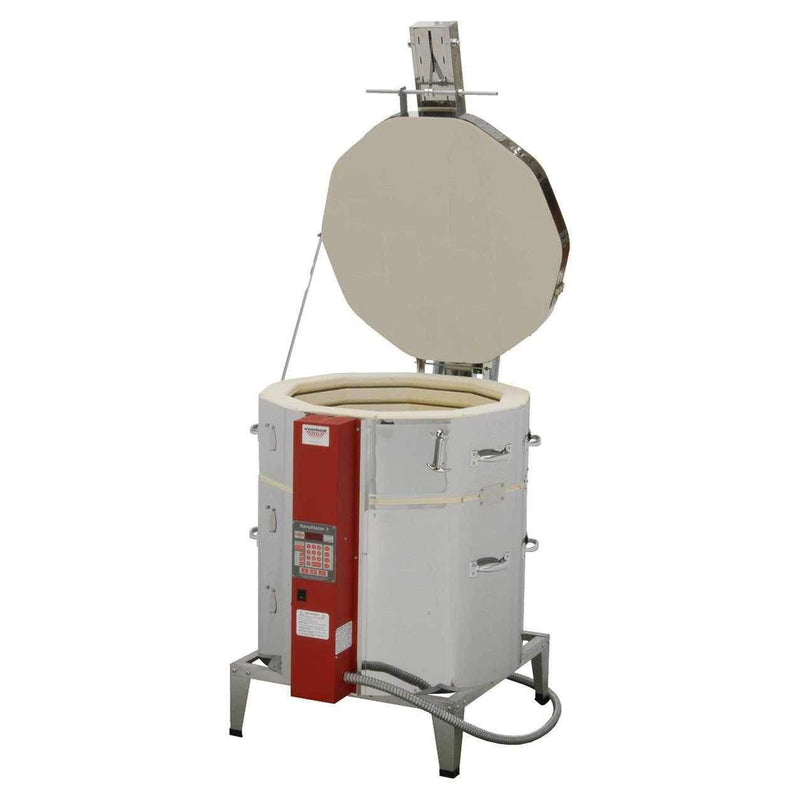

The HF 2327 is the choice of studios who desire cone 10 ability along with firing performance.
Design details include 3" firebrick for greater firing efficiency, multi-zone TAP Touchscreen, Genesis Touchscreen or Rampmaster II controls for superior temperature distribution and our Patented Dyna-Lift lid lift assist that's easy on you and the kiln. Order yours with our Quiet Drive Solid State output option for tight temperature control and longer element life.
Evenheat HF 2327 Specifications
23.5" Dia. x 27" Deep - 7.0 cubic feet
Operating Voltage: 240V
Amperage: 48A
Watts: 11,520W
Operating Voltage: 208V
Amperage: 48A
Watts: 9984W
Power Cord Plug Style: NEMA 6-50P
Ship Weight: 330lb (150kg)
TUV listed (UL 499) United States and Canada
FEATURES
- 2 Position Lid Vent
- 3" Brick Construction
- Access Port (Pat. Pend.)
- Dyna-Lift Lid Lift Assist
- Full Stainless Jacket
- Lid Security Bar
- Multi-Zone Control
- Multiple Control Options
- Single Maintenance Line
- Swing Away Peephole Cover
- Swing View Adjustable Control
- Wonderful Lid Handle
2 Position Lid Vent
The HF 2327 is equipped with a 2 position lid vent.
3" Brick Construction
The HF 2327 is constructed entirely of high quality, US domestic 3" brick.
Access Port (Pat. Pend.)
The HF 2327 incorporates Evenheat's new relay access port (Pat. Pend.) for simple, no-panel-off relay replacement.
Simply remove the plate to gain access to the service part. There's no need to remove or swing the entire control panel out of the way and dig into the internal wiring. It's absolutely simple and effective and all it takes is a simple screwdriver!
Dyna-Lift Lid Lift Assist
The No Damage Lift Assist
Evenheat is proud to offer our Patented Dyna-Lift lid lift assist for our large kilns.
The Dyna-Lift lightens the force needed to operate the kiln lid. It does so with ease and grace and with no negative effects upon the kiln itself. Hallmarks of the design include no kiln body connection, single point lifting and emphasis on allowing the lid to act naturally.
We have a lot to tell you about the new Dyna-Lift and why we believe it is the best designed, best performing lift assist available. We invite you to take some time to find out more.
Full Stainless Jacket
Multi-section kilns were conceived to lower production costs for the kiln manufacturer. This is a worthy goal but it comes at the cost of kiln quality. It's a trade off we're not willing to make. We build our kilns with full stainless jackets from top to bottom. Full stainless jackets mean absolutely solid, life extending construction. There are no leaks, no shifting and no weakness. Insist on Full Stainless Jackets for true build quality.
Lid Security Bar
The HF 2327 is provided with a lid security bar that positively holds the lid in the open position.
Multi-Zone Control
Evenheat's exclusive use of the Bartlett line of controls for all High Fire models allows the use of multi-zone control.
Multi-zone control uses a number of temperature sensors to develop and maintain an equal temperature throughout the firing chamber. Multi-zone provides accurate and predictable results regardless of load volume.
Multiple Control Options
Evenheat works closely with control manufacturers Bartlett Instruments and SDS Industries to bring you the best in performance, features and programming ease.
Control Options Include:
TAP Touchscreen, full featured touchscreen control with user-defined and preset programs for glass, metal clay and ceramic. Also features full-text graphics, cost per firing, and graphing along with wi-fi compatibility with web and mobile apps and more.
Genesis Touchscreen, full featured touchscreen control with user-defined and preset programs.
Rampmaster 3 (RM3), full featured control with user-defined and preset programs for glass. Features a 4 digit display.
Economical Set-Pro, 3 button control with user-defined and preset programs for glass, metal clay and ceramic. Features a 4 digit display.
Single Maintenance Line
Our HF 2327 model features a "Maintenance Line". The Maintenance Line is a split in the jacket that allows the HF 2327 to be partially disassembled for ease in element replacement and kiln installation. The Maintenance Line is held securely in place through the use of stainless steel plates and screws. Simply remove the screws and separate the sections for maintenance or installation. We do not use buckles to hold the sections together as they tend to loosen and allow shifting during loading, unloading and use.
Swing Away Peephole Cover
Our kiln designs feature swing-away peephole covers as opposed to plugs. Plugs get lost and they get broken. Our attached peephole covers remain on the kiln and simply swing open and closed. You won't lose them and they certainly won't break.
Swing View Adjustable Control
The Swing View Adjustable Control is a pivoting, swing-up enclosure that allows the user to rotate the control to a comfortable viewing and programming angle. it is that simple. You're going to really enjoy this feature.
The Swing View Adjustable Control is stock equipped on the HF 2327 with TAP or Rampmaster controls.
Wonderful Lid Handle
We love handles. Handles have to be properly sized and shaped for the job. Our lid handle makes this point by offering a 16" handle that's easy to grasp and operate. This wide, corner mounted handle allows for confident and easy lifting, even with a gloved hand. It's unlike any other and it's a joy to use.
