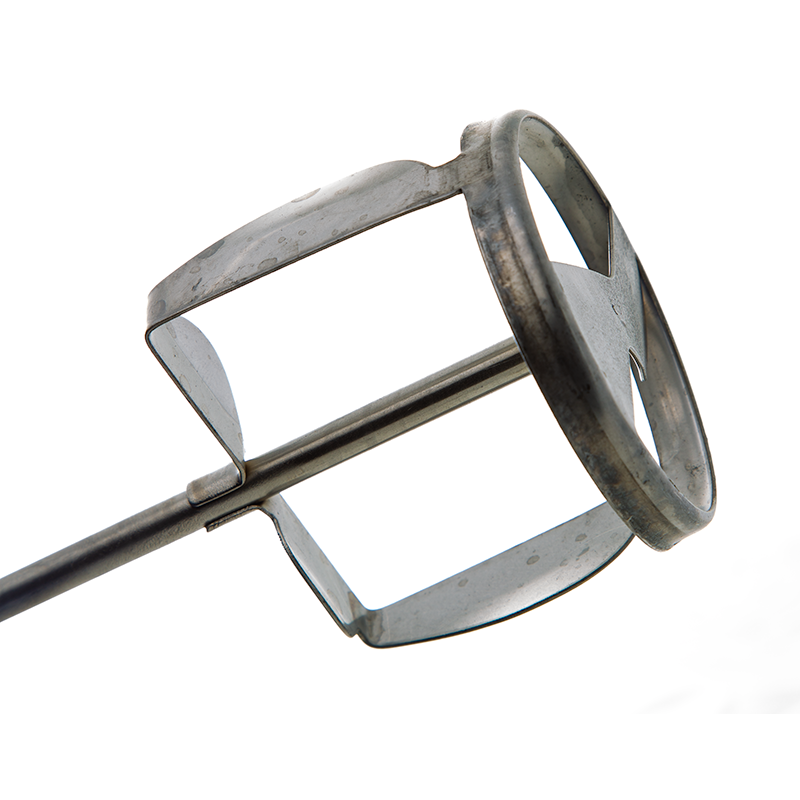

HS-1 JIFFY MIXER : JIFFY MIXER
JIFFY MIXER is an all purpose, heavy duty, extremely efficient industrial/commercial mixer. It is designed to quickly and thoroughly mix dense and viscous substances in an open container. It eliminates waste and unwanted aeration of materials in addition to cutting mixing time up to 90%.
It is equally effective with liquids, dry materials, liquid and dry materials combined, or multiple component materials.
Made of polished stainless steel 304, its construction and design is for mixing, not just stirring. Its various sizes fit standard 1/4", 3/8", 1/2", 3/4" chucked power tools.
It has two sets of specially welded blades. The vertical ones keep the mixing action between them, the horizontal ones employ an exclusive hydraulic-flow principle that prevents sucking air. In addition, the horizontal blades pull the high density material up from the bottom while forcing the low viscosity solvents down from the top.
All stress joints are specially welded for extra strength so it is virtually impossible for them to break.
| Model | Shaft Length in. mm |
Container Size | Top Diameter in. mm |
Bottom Diameter in. mm |
Depth of Head in. mm |
Shaft Dia. in. mm |
|
LM |
10 1/4 260 10 1/4 260 14 3/4 375 30 762 20 1/2 521 20 1/2 521 40 1016 40 1016 |
pint 1-2 gal. 1-2 gal. 1-2 gal. 2-5 gal. 5-10 gal. 10-50 gal. 75-100 gal. |
1 1/4 32 2 5/8 67 2 5/8 67 2 5/8 67 3 1/4 83 4 5/8 117 4 5/8 117 8 1/2 216 |
1 1/4 32 2 5/8 67 2 5/8 67 2 5/8 67 3 3/4 95 5 1/8 130 5 1/8 130 9 3/4 248 |
1 3/8 35 2 3/8 60 2 3/8 60 2 3/8 60 3 3/4 95 5 127 5 127 10 254 |
1/4 6 1/4 6 1/4 6 1/4 6 3/8 10 1/2 13 1/2 13 3/4 19 |
DO NOT EXCEED RPMS FOR MODELS AS LISTED
| MODEL | RPM | MODEL | RPM | ||
|
LM |
up to |
1200 |
ES |
up to |
1000 |
