L & L Kilns Doll-Baby Series : DLH-11 DX : Cone 10

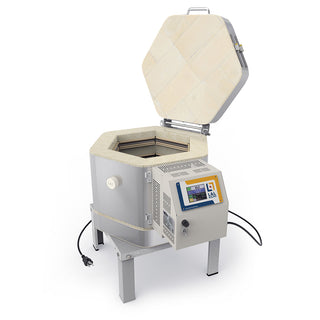

Model DLH11-DX Doll/Test Kiln With Bartlett Genesis Mini Controller.
Kiln comes with hard ceramic element holders, protected thermocouple, strong solid-top stand, and solid peephole plug.11" Diam x 9" High (0.5 cu ft). 2-1/2" K23 brick.
Cone 10 all voltages.
Includes NEMA 6-20 plug. C-MET-us listed in the USA & Canada.
Insulation: 3" (63 mm) K23 Premium Firebrick
Loading: Top-Loading
Sections: One section
Sides: 6 sides
Volume: 0.5 cubic ft (14 Liters) Kiln
Weight: 105 pounds (47 Kg)
Dimensions (Inside): 11" Diam x 9" High
Dimensions (Outside): 19" Wide x 25" Deep x 22" High
48.3 cm Wide x 63.5 cm Deep x 55.9 cm High
Voltage 240 Single Phase | 15 Amp breaker
- Amps: 11.7
- Wire Connection: 5-20P Plug
- Wire Gauge for Connection: 14 Ga
- Branch Fusing: Not Branch Fused
- Element Wiring: Series
- Max Temperature: Cone 10, 2350F, 1290C
One 9” high section sits on a bottom. The kiln is very easy to assemble and disassemble.
Stainless steel wrapped around shaped firebrick. There are three adjustable clamps welded to each casing. All assembly is with stainless steel screws. The kiln sections sit on a separate stand.
Simple strong hinge with chain for door support
Heavy-duty 14 gauge full solid stand with multiple bends for strength. Legs bolt on with heavy 1/4-20 stainless bolts. The metal is aluminized for good corrosion resistance.
A proprietary brick coating is applied to all interior surfaces of the kiln. This is put on before the element holders are inserted. This coating penetrates the firebrick and fuses the surface on a microscopic level which helps prevent dusting and crumbling of the fragile firebrick.
One solid ceramic peephole plug with full 1” diameter.
Limited Three Year Warranty
OPTIONAL FURNITURE KIT
Part Number:
OPTIONAL FURNITURE KIT
Part Number:
H-D-KDHL/00
OPTIONAL FURNITURE KIT Part Number: H-D-KDHL/00 Includes: Two 9" Full Round Shelves (3/8" thick) and Kit includes four each of 1/2", 1", 2", & 4" high 1-1/2" Square Ceramic Posts
