L&L E14S-3 Easy Fire Kiln

L&L E14S-3 Easy-Fire Kiln

Model e14S-3Easy-Fire Automatic Kiln is a small kiln for tests and smaller ceramic projects.
It has the 12 key V6CF Dynatrol Control with the option to upgrade to the wifi Genesis Touch screen controller.

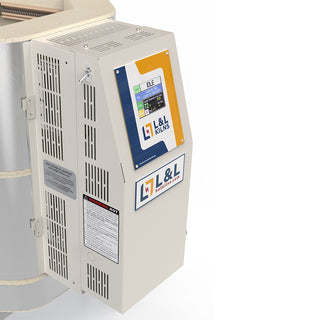

The control panel is angled for easy viewing of the controller without having to purchase any additional hardware.
.
Kiln comes with hard ceramic element holders, thermocouple protection tubes, a strong solid-top stand, and solid peephole plugs.

13-1/2" diameter by 18" high (1.5 cubic feet).
3" K23 brick. 240-volt version includes a 15-20 power cord and the 208-volt version includes a 14-30 cord.
C-MET-us listed in the USA & Canada.
Cone 10 for all voltages.

• Insulation:

  3" K23 Firebrick

• Sections:

  Two 9" high sections

• Inside Dimensions:

  13.50"

  Diameter x

  18.00"

  High (34.29 cm Diameter x 45.72 cm High)
• Outside Dimensions:

  23.00"

  Wide x

  27.00"

  Deep x

  51.00"

  High (58.42 cm Wide x 68.58 cm Deep x 129.54 cm High)
• Weight:

  150

  lbs (68 kg)

•

• ELECTRICAL REQUIREMENTS
•

• 240Volt/Single phase:
• Amps: 16 draw: USe 20 amp dedicated breaker
• Wire Connection: 5-20P Plug
• Wire Gauge for Connection: 14 Ga

• 208 Volt / Single Phase
• Amps: 18.5 draw: Use 25 amp dedicated breaker
• Wire Connection: 14-30P Plug (30 amp, 200-250 volt) (Kiln may be direct wired at customer's option without affecting the MET listing)
• Wire Gauge for Connection: 12 Ga

Optional Furniture Kit (H-E-K14S/00)Includes:Three 12" Full Round Shelves (1/2" thick), Four each of 1/2", 1", 2", 4", & 6" high 1-1/2" Square Ceramic Posts, and One Pair Heat Resistant Gloves
