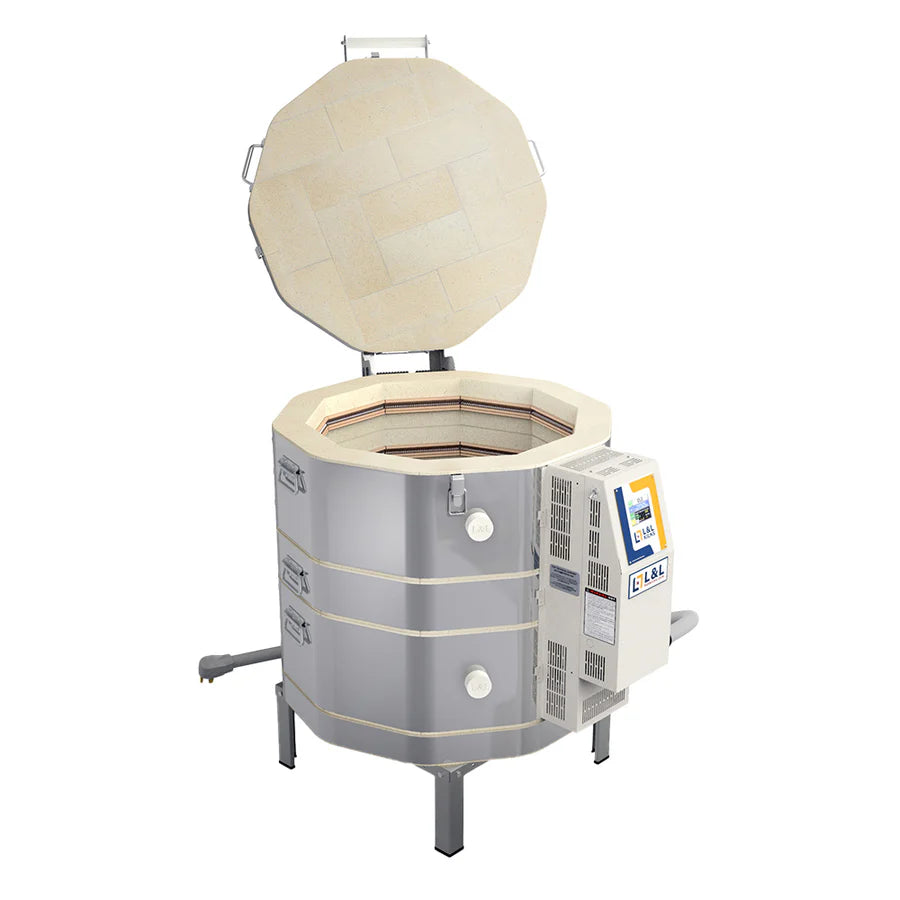

L&L Easy-Fire Kilns L&L E23M-3: 3" BRICK EASY-FIRE KILN
3 Zones5.5 Cubic Feet
22.5" interior height for easy loading !
23.5" across x 22.5 deep
![L&L KIlns E23M specs](https://cdn.shopify.com/s/files/1/0677/5508/2050/files/ll-kilns-e23M-specs.jpg?v=1684342298)
![Expert Kiln Support](https://cdn.shopify.com/s/files/1/0677/5508/2050/files/kiln-experts_a98a9d62-c35b-4085-a0e9-9590fa4fd7a3.jpg?v=1684313055)
This is one of our top selling kilns. The full size control panel make it simple to program custom firing curves but most people find every thing they need in the slow and fast bisque and glaze programs already installed at the factory. You can now upgrade to the Genesis Touch Screen Controller for even easier access to firing curves and firing reviews.
Save even more when you order the furniture kit of shelves and posts when you order with a new kiln.
The vent system is a highly recommended option. It is very important to have the down-draft vent when the kiln is installed in a basement or other living space.
L&L Easy-Fire Kilns are backed by a three year warranty.
You can expect many years of great firings in your L&L Easy Fire kiln !
Note: Furniture kit and Vent are also discounted prices ! Use the check boxes and the update price button above to tune your package to fit your budget.
The easy-fire kiln meets the needs of teachers, institutions, camps, hobbyists, potters and others who need an easy to operate, easy to set up, easy to maintain, easy to understand, and easy to buy kiln. It has L&L’s robust and time-proven technology like ceramic element holders, industrial-grade element terminals, ceramic thermocouple protection tubes, heavy-duty elements, corrosion resistant materials, “Easy-Open, Easy-Load” spring hinge, removable control panel and zone control with four “Easy-Fire” programs. Get everything you need for one easy price.
Note: The prices shown above in "Choose your options" for Furniture kit and Vent are also super discounted ! Use the check boxes and the update price button above to tune your package to fit your budget.
TEMPERATURE RATING: Cone 10
![L&L Easy Fire Kiln Dimentions](https://cdn.shopify.com/s/files/1/0677/5508/2050/files/e23t3overview.jpg?v=1684304743)
Element Terminations Stainless Bolts on Ceramic Blocks, no special tools needed
Zone Control Included at no extra cost (two zones)
Thermocouples Heavy-duty 8 gauge with Ceramic Protection Tubes (3
Hinge Spring-Assist reduces weight of lid
Hinge Support Bars No - nothing to get in way of loading
Door Angle When Open To the back (doesn’t hang over opening)
Hinge Safety Latch Yes. Locking plunger pin, very positive & secure
Stand Full support, 14 ga aluminized steel with rigid bends
Elements Heavy-Duty
Brick Coating Reflective coating on entire interior, hardens brick
Easy Delay Start, Preheat, Hold Yes
Number of Easy Ceramic Programs Four
Number of User-Defined Programs Six
Instructions Complete easy-to-read visual manual, Video included
On/Off Switch Yes - you can turn kiln off
Control Fuse Yes
Control Panel Removable, separate piggybacked panel for control
Power Cord 6-50P for 1 phase
Sectional Construction Yes, easy to move and set up
Reversible Bottom Yes
Cone Limitation Cone 10
Brick Thickness 3''
Case Construction Stainless Steel, 3 clamps each
Assembly Screws Stainless Steel
Safety Agency Listing c-UL-us listed, Vent-Sure vent is also c-UL-us listed
Vent Downdraft, fumes under vacuum, motor on wall
Warranty Three Year Limited Warranty for both kiln & vent
Optional Vent Sure System
![](https://cdn.shopify.com/s/files/1/0677/5508/2050/files/ventsuredrawing.jpg?v=1684304759)
