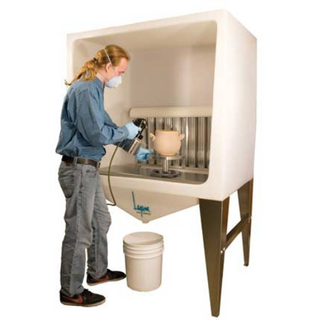

Laguna Pro-V Seamless Spray Booth

NL-352 LAGUNA PRO-V SEAMLESS SPRAY BOOTH

A pottery spray paint booth is a must have for safely spraying glazes and paints whether airbrushing ceramics, metals or other crafts.
Created for Laguna by one of the industries most respected designers of spray booth equipment, this uni-cast, modular, polyethylene unit is without question the most intelligent, economical, and environmentally sound choice for individuals and companies spraying glazes (or anything else). Whether you need a single booth or a fully automated commercial spray line, the Pro-V is the first and most essential component of your system.
Includes stainless steel leg assembly and polyethylene filter
bracket. Outside dimensions, including exhaust motor
mount on back: 551/2” H x 481/4” W x 501/4” D.
Inside dimensions: 39” H x 47” W x 34” D.

Pottery Spray Paint Booth Features:

• Uni-cast, polyethylene construction sheds glaze and makes clean-up a breeze.
• Legs and bracing are stainless steel - no rust or corrosion.
• UV inhibited polyethylene won’t discolor.
• Funneled floor with drain hole directs over-spray into bucket for recycling.
• Booth can be adapted to automated, conveyor spraying - single or multiple booth operations.
• Commercial / Industrial quality at studio affordability.
• Ship. wt. 195 lbs.

Material Composition Your Laguna airbrush spray booth was manufactured from ethylene–olefin copolymer, commonly referred to as polyethylene. This material has a melt point of 330°F and a flash point of 650°F. The material is stable unless subjected to extremely strong acids.

Spraying Applications: The standard fan, motor and filters sold as accessories to the Laguna airbrush spray booth are for use with water based, non-flammable and non-toxic materials. This motor may be purchased from Laguna Clay Company. For safety reasons, a special motor is required when spraying flammable materials. Use of toxic or flammable materials may require a more sophisticated air filtration system.

Venting and ducting : A primary function of your spray booth is to vent and collect overspray. This is accomplished by three components: the filters, the fan, and the ducting. The filters in this pottery spray paint booth catch most of the over-spray. Glaze particles that are pulled past the filters will generally collect in the plenum behind the filters. While the installation of your airbrush paint booth is not complicated, many communities regulate the use and installation of such equipment, and we recommend you contact an HVAC contractor to ensure compliance with local building, environmental and safety requirements.

Filters Laguna Clay Company offers two types of filters for the Pro-V or Pro X Spray Booth –styrofoam filters or long-lasting aluminum filters. Both filters are baffle design and should be washed after each spraying session. A set of two filters is required for the Pro –V booth, and one filter for the Pro X. Some filters in this Laguna airbrush spray booth are not reversible and must be positioned as indicated by air-flow indicator.

Fan and Motor: Exhaust fan/motor systems are available for both the Pro-V and Pro-X. Laguna has done extensive testing to ensure that the exhaust systems are properly matched to the booth size and static pressure created by typical booth installation. The standard motors are single phase, 115V. The Pro-V motor can be adapted to either 115V or 220V. Motor Mount: While the fan & motor can be mounted on the plenum at the back of the booth, it is often desirable to run ducting from the plenum to an outside wall or roof-mount, thus separating motor and fan noise from the room in which the spray booth is being used. This is an alternate way to set up your fan and motor however, your HVAC or electrical contractor can help you explore all available options.

Accessories:

• 12” x 47” Stainless Steel Shelf Ship. wt. 13 lbs.

Filters:

• Reusable styrofoam (set of 2) Ship. wt. 5 lbs.
• Long-lasting aluminum (set of 2) Ship. wt. 20 lbs.
• Air Regulator / filter with gauge and bracket. Ship. wt. 3 lbs.
• Tubeaxial Exhaust Fans

Designed specifically for spray booth use. Operates in any position. 12” precision balanced, spark-resistant aluminum fan blades, galvanized housing, permanently lubricated ball bearings.
1/2 HP for single booth Ship. wt. 60 lbs.
3/4 HP for multiple booths Ship. wt. 63 lbs.
