OLYMPIC KILN DD14 - DOWNDRAFT KILN Gas or Propane
Please call for special discount pricing of this Olympic DD14 downdraft kiln.
We also offer professional delivery kilns with our Cargo Master Crane System.

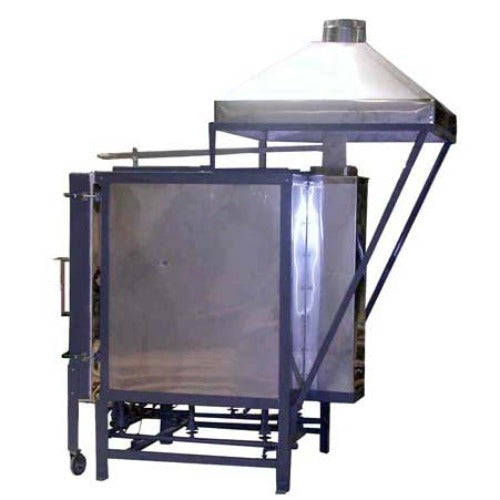

Downdraft 14 cubic feet gas kiln with or without vent hood
Model - DD14 w Hood/Brick/ Propane or Natural Gas
Inside Dimensions: (setting area for firing pieces) 29" wide x 28" deep x 31" high, fires to cone 10/2350°F, brick or fiber construction
Model comes with frame welded to firing chamber, two peephole plugs, instruction manual, and warranty card. Vents are palletized separately from kiln. There is a one-year warranty for the Olympic DD14 downdraft kiln.
Olympic Down Draft kilns can be
built of brick or fiber. The frame of the Olympic DD14 downdraft kiln is made of heavy angle iron and 1" thick steel tubing. We've thickened both the brick
and fiber insulation which is now backed with an 1" airs pace created
by the square tubing between the stainless steel jacket and the
insulation. Four and one half inches of brick and 1" ceramic fiberboard
insulate the brick Down Drafts, and three inches of fiber with 1"
ceramic fiberboard insulate the fiber DownDrafts. We've added air space
with the metal tubing to the doors of the fiber and brick DownDrafts to
enhance the kiln's strength and efficiency. Additionally, the air space
results in a cooler outer surface and a thicker kiln door. Fiber and brick DownDrafts are built with double insulated floors, consisting of
brick and ceramic fiberboard. The additional strength and insulation
enables the kiln to fire at high temperatures, and to maintain
temperatures without damage or deterioration. Efficient venturi burners
are used on the Down Draft kilns with an option for blower burners if
desired.
These models can be made as a car kiln, add 25%.
OLYMPIC KILN DD14 - DOWNDRAFT KILN Gas or Propane
Please call for special discount pricing of this Olympic DD14 downdraft kiln.
We also offer professional delivery kilns with our Cargo Master Crane System.
Downdraft 14 cubic feet gas kiln with or without vent hood
Model - DD14 w Hood/Brick/ Propane or Natural Gas
Inside Dimensions: (setting area for firing pieces) 29" wide x 28" deep x 31" high, fires to cone 10/2350°F, brick or fiber construction
Model comes with frame welded to firing chamber, two peephole plugs, instruction manual, and warranty card. Vents are palletized separately from kiln. There is a one-year warranty for the Olympic DD14 downdraft kiln.
Olympic Down Draft kilns can be
built of brick or fiber. The frame of the Olympic DD14 downdraft kiln is made of heavy angle iron and 1" thick steel tubing. We've thickened both the brick
and fiber insulation which is now backed with an 1" airs pace created
by the square tubing between the stainless steel jacket and the
insulation. Four and one half inches of brick and 1" ceramic fiberboard
insulate the brick Down Drafts, and three inches of fiber with 1"
ceramic fiberboard insulate the fiber DownDrafts. We've added air space
with the metal tubing to the doors of the fiber and brick DownDrafts to
enhance the kiln's strength and efficiency. Additionally, the air space
results in a cooler outer surface and a thicker kiln door. Fiber and brick DownDrafts are built with double insulated floors, consisting of
brick and ceramic fiberboard. The additional strength and insulation
enables the kiln to fire at high temperatures, and to maintain
temperatures without damage or deterioration. Efficient venturi burners
are used on the Down Draft kilns with an option for blower burners if
desired.These models can be made as a car kiln, add 25%.
| OLYMPIC KILNS COMMERCIAL DOWNDRAFT GAS KILNS | |||||||||||||
| Model | Inside Volume Cu. Ft. |
Setting Space Cu. Ft. |
Setting Area Inches |
InsideDimensionsInches |
Outside Dimensions *-Inches (w x d x h) |
Shelf Size | Maximum Temp | Max BTU/HR Input | Gas Line Inlet |
Orifice Size |
Orifice Size |
No. of Burners | Approximate Shipping Wt. |
| DD9 | 15 | 9.2 | 23 x 23 x 30 | 30 x 25 x 35 | 50 x 55 x 73.5 | 2-11x22x1 | Cone 10 | 120,000 | 3/4 " | Sep-64 | #40 | 3 | Brick -1,216 |
| 2350°F | Fiber – 1,194 | ||||||||||||
| DD12 | 18.75 | 12.1 | 27 x 28 x 31 | 33 x 32 x 37 | 52.5 x 62 x 75 | 2-13x26x1 | Cone 10 | 150,000 | 1 " | Sep-64 | #40 | 6 | Brick -1,525 |
| 2350°F | Fiber –1,415 | ||||||||||||
| DD14 | 21.9 | 14.5 | 29 x 28 x 31 | 35 x 32 x 37 | 54.5 x 62 x 75 | 2-14x28x1 | Cone 10 | 250,000 | 1 " | Sep-64 | #40 | 6 | Brick -1,566 |
| 2350°F | Fiber –1,481 | ||||||||||||
| DD17 | 24.8 | 17.3 | 29 x 28 x 37 | 35 x 32 x 42 | 54.5 x 62 x 80 | 2-14x28x1 | Cone 10 | 275,000 | 1 " | Sep-64 | #40 | 6 | Brick -1,613 |
| 2350°F | Fiber – 1,528 | ||||||||||||
| DD20 | 32.6 | 20.5 | 31 x 31 x 37 | 37 x 36 x 43 | 56 x 55.5 x 81 | 4-15x15x1 | Cone 10 | 300,000 | 1 " | Sep-64 | #40 | 6 | Brick -1,702 |
| 2350°F | Fiber – 1,617 | ||||||||||||
| DD24 | 37.7 | 24.6 | 32 x35 x 38 | 38 x 40 x 43 | 52 x 67 x 82 | 4-16x16x1 | Cone 10 | 350,000 | 1 " | Sep-64 | #40 | 6 | Brick -1,890 |
| 2350°F | Fiber – 1,750 | ||||||||||||
| DD30 | 44 | 30 | 36 x 36 x 40 | 42 x 41 x 47 | 61.5 x 70.5 x 86 | 4-18x18x1 | Cone 10 | 375,000 | 1 " | Sep-64 | #40 | 8 | Brick -1,951 |
| 2350°F | Fiber –1,848 | ||||||||||||
| DD40 | 53 | 40 | 41 x 41 x 41 | 46 x 46 x 48 | 64.5 x 74 x 85 | 4-20x20x1 | Cone 10 | 390,000 | 1 " | Sep-64 | #40 | 8 | Brick –2,150 |
| 2350°F | Fiber – 1,968 | ||||||||||||
