You are browsing ceramic kilns, Olympic Kilns. This is an

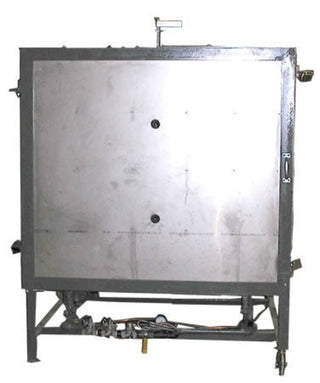

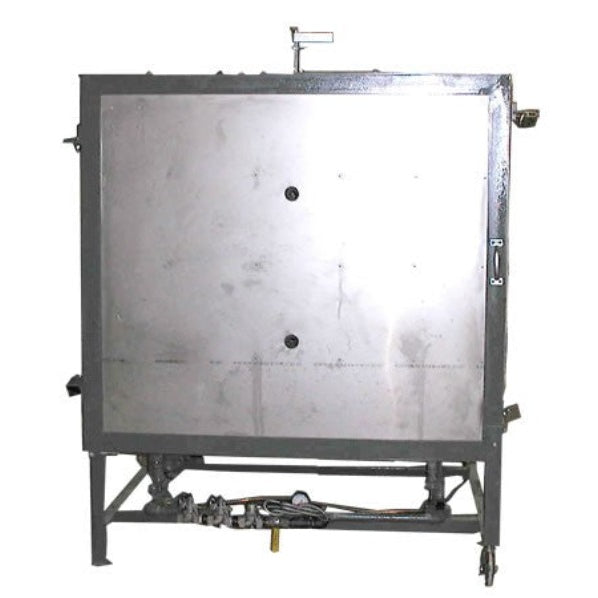

OLYMPIC KILN DD20 - DOWNDRAFT KILN Gas or Propane
Please call for special discount pricing of the Olympic Downdraft Kilns. We also offer professional delivery kilns with our Cargo Master Crane System.
Olympic Down Draft kilns can be
built of brick or fiber. The frame of the DownDraft is made of heavy
angle iron and 1" thick steel tubing. We've thickened both the brick
and fiber insulation which is now backed with an 1" airs pace created
by the square tubing between the stainless steel jacket and the
insulation. Four and one half inches of brick and 1" ceramic fiberboard
insulate the brick Down Drafts, and three inches of fiber with 1"
ceramic fiberboard insulate the fiber DownDrafts. We've added air space
with the metal tubing to the doors of the fiber and brick DownDrafts to
enhance the kiln's strength and efficiency. Additionally, the air space
results in a cooler outer surface and a thicker kiln door. Fiber and brick DownDrafts are built with double insulated floors, consisting of
brick and ceramic fiberboard. The additional strength and insulation
enables the kiln to fire at high temperatures, and to maintain
temperatures without damage or deterioration. Efficient venturi burners
are used on the Down Draft kilns with an option for blower burners if
desired.
These models can be made as a car kiln, add 25%.
OLYMPIC KILN DD20 - DOWNDRAFT KILN Gas or Propane
Please call for special discount pricing of the Olympic Downdraft Kilns. We also offer professional delivery kilns with our Cargo Master Crane System.
Olympic Down Draft kilns can be
built of brick or fiber. The frame of the DownDraft is made of heavy
angle iron and 1" thick steel tubing. We've thickened both the brick
and fiber insulation which is now backed with an 1" airs pace created
by the square tubing between the stainless steel jacket and the
insulation. Four and one half inches of brick and 1" ceramic fiberboard
insulate the brick Down Drafts, and three inches of fiber with 1"
ceramic fiberboard insulate the fiber DownDrafts. We've added air space
with the metal tubing to the doors of the fiber and brick DownDrafts to
enhance the kiln's strength and efficiency. Additionally, the air space
results in a cooler outer surface and a thicker kiln door. Fiber and brick DownDrafts are built with double insulated floors, consisting of
brick and ceramic fiberboard. The additional strength and insulation
enables the kiln to fire at high temperatures, and to maintain
temperatures without damage or deterioration. Efficient venturi burners
are used on the Down Draft kilns with an option for blower burners if
desired.These models can be made as a car kiln, add 25%.
| OLYMPIC KILNS COMMERCIAL DOWNDRAFT GAS KILNS | |||||||||||||
| Model | Inside Volume Cu. Ft. |
Setting Space Cu. Ft. |
Setting Area Inches |
InsideDimensionsInches |
Outside Dimensions *-Inches (w x d x h) |
Shelf Size | Maximum Temp | Max BTU/HR Input | Gas Line Inlet |
Orifice Size |
Orifice Size |
No. of Burners | Approximate Shipping Wt. |
| DD9 | 15 | 9.2 | 23 x 23 x 30 | 30 x 25 x 35 | 50 x 55 x 73.5 | 2-11x22x1 | Cone 10 | 120,000 | 3/4 " | Sep-64 | #40 | 3 | Brick -1,216 |
| 2350°F | Fiber – 1,194 | ||||||||||||
| DD12 | 18.75 | 12.1 | 27 x 28 x 31 | 33 x 32 x 37 | 52.5 x 62 x 75 | 2-13x26x1 | Cone 10 | 150,000 | 1 " | Sep-64 | #40 | 6 | Brick -1,525 |
| 2350°F | Fiber –1,415 | ||||||||||||
| DD14 | 21.9 | 14.5 | 29 x 28 x 31 | 35 x 32 x 37 | 54.5 x 62 x 75 | 2-14x28x1 | Cone 10 | 250,000 | 1 " | Sep-64 | #40 | 6 | Brick -1,566 |
| 2350°F | Fiber –1,481 | ||||||||||||
| DD17 | 24.8 | 17.3 | 29 x 28 x 37 | 35 x 32 x 42 | 54.5 x 62 x 80 | 2-14x28x1 | Cone 10 | 275,000 | 1 " | Sep-64 | #40 | 6 | Brick -1,613 |
| 2350°F | Fiber – 1,528 | ||||||||||||
| DD20 | 32.6 | 20.5 | 31 x 31 x 37 | 37 x 36 x 43 | 56 x 55.5 x 81 | 4-15x15x1 | Cone 10 | 300,000 | 1 " | Sep-64 | #40 | 6 | Brick -1,702 |
| 2350°F | Fiber – 1,617 | ||||||||||||
| DD24 | 37.7 | 24.6 | 32 x35 x 38 | 38 x 40 x 43 | 52 x 67 x 82 | 4-16x16x1 | Cone 10 | 350,000 | 1 " | Sep-64 | #40 | 6 | Brick -1,890 |
| 2350°F | Fiber – 1,750 | ||||||||||||
| DD30 | 44 | 30 | 36 x 36 x 40 | 42 x 41 x 47 | 61.5 x 70.5 x 86 | 4-18x18x1 | Cone 10 | 375,000 | 1 " | Sep-64 | #40 | 8 | Brick -1,951 |
| 2350°F | Fiber –1,848 | ||||||||||||
| DD40 | 53 | 40 | 41 x 41 x 41 | 46 x 46 x 48 | 64.5 x 74 x 85 | 4-20x20x1 | Cone 10 | 390,000 | 1 " | Sep-64 | #40 | 8 | Brick –2,150 |
| 2350°F | Fiber – 1,968 | ||||||||||||
