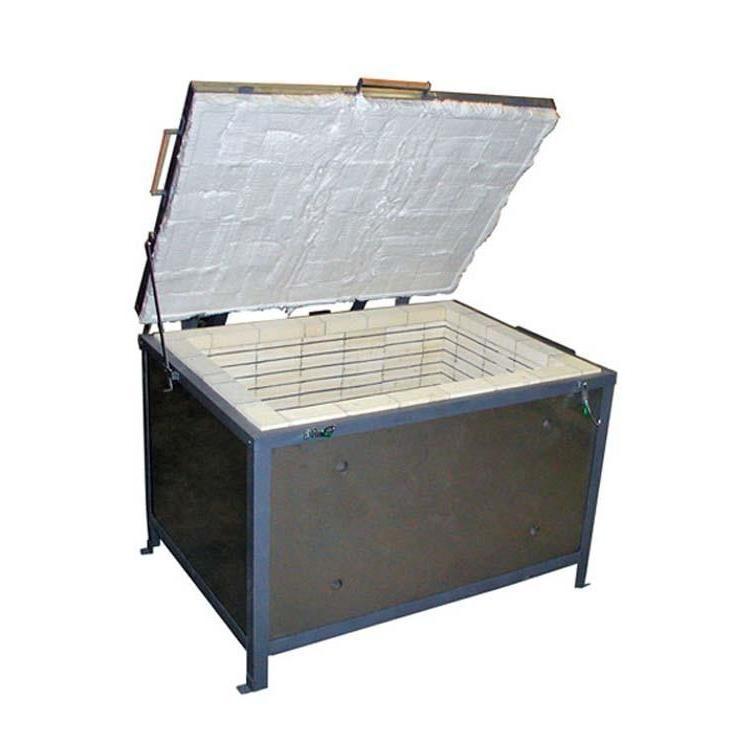

Olympic Top Loading Commercial Electric Kiln TL5432E

Olympic Top Loading Commercial Electric Kiln TL20

Olympic Top Loading Commercial Electric Kiln TL5432 WithV6-CF Electronic Controller. See complete specs and optional furniture kit contents in charts below.

Model – TL5432E 240 or 208 volt - Top loading production volume 36 cubic feet electric kiln

• Inside Dimensions: 54" wide x 36" deep x 32" high, fires to cone 10/2350°F

Top loading high volume models come equipped with pilot light, welded heavy angle frame, stainless steel jacket, and 12 key digital Bartlett V6-CF or RTC-1000 controller for more ramp-hold user programs and multiple features including delay start, preheat, cone offset, skip step and many more for precise firings every time. Messages and Information are available for reviewing a firing profile before or during the firing, viewing the current segment the firing is in, and cone table for easy look up of temperature and cone number equivalents. The TL5432E is equipped with its own breaker box for easy access, safety and lockout.

Additional options include upgrading to the Genesis touchscreen controller, 480 volt, Type S thermocouple, castors, vent, and much more!

Optional Furniture Kits for Large Capacity Kilns provide 4 layers of shelving, assorted posts, and a 5 pound bag of kiln wash
Ask about our delivery and Professional Inside Setup.

Please Call us toll-free 888.774-2529 for sale prices or to order any Olympic Kiln not yet in our shopping cart system

Shown Right TL20E

Olympic Top Loading Commercial Electric Kilns

The frames of the Olympic top and front-loading commercial electric kilns are built of heavy angle iron and metal tubing. Walls are 4 1/2" insulating brick with 1" ceramic fiberboard and 1" air space created by the tube frame. The result is an energy efficient electric commercial kiln with a cooler skin and outside temperature. Top and front-loading electric kilns are all built with double insulated floors consisting of brick and ceramic fiberboard. Thicker doors and lids have been designed for the Olympic commercial electric kilns. The front-loading kiln doors are built with heavier steel and the 4 1/2" brick insert in the door for the elements is backed by 1" x 1" steel tubing and 1" ceramic fiberboard. The ceramic fiber in the door or lid is energy efficient and forms a tight seal between the opening and body of the kiln. Top loading electric kiln walls and floors are constructed of brick and board insulation, and modern pyro-brick modules comprise the easy opening counter-sprung lid.

Floor elements when selected as an option are controlled by infinite switches and can be adjusted by the kiln operator as needed. All commercial electric kilns are equipped with heavy gauge elements for long life. Industrial relays insure quiet operation and long-life and the commercial electrical boxes are hinged and simplify kiln maintenance.

Furniture Kits for commercial electric kilns are available. Each kit consists of 4 layers of shelving, post assortment and kiln wash. Some kilns require crating. There is a charge for crating and additional weight is added to the shipping weight when crated. Custom designed kilns quoted and manufactured upon request.



Olympic Kilns: Providing More Models & Styles Than Any Other Kiln Manufacturer, Gas or Electric

Olympic Kilns started manufacturing kilns in Seattle, Washington and derives its name from the Olympic Mountains. As the company grew so did its product lines to include electric, gas and glass kilns for the hobbyist, production artist and manufacturer of finished fired ware.
