Paragon Dragon Kiln Package 24"W x 27"H x 24"D 2350°F Max Temp
240 Volts / 1 Phase / 60 Hz 68 Amps 16225 Watts
Sentry 12-Key Controller
Direct Wired
24" Stand Without Castors
Auxiliary Output Plug
240V Kiln Vent
Door Switch

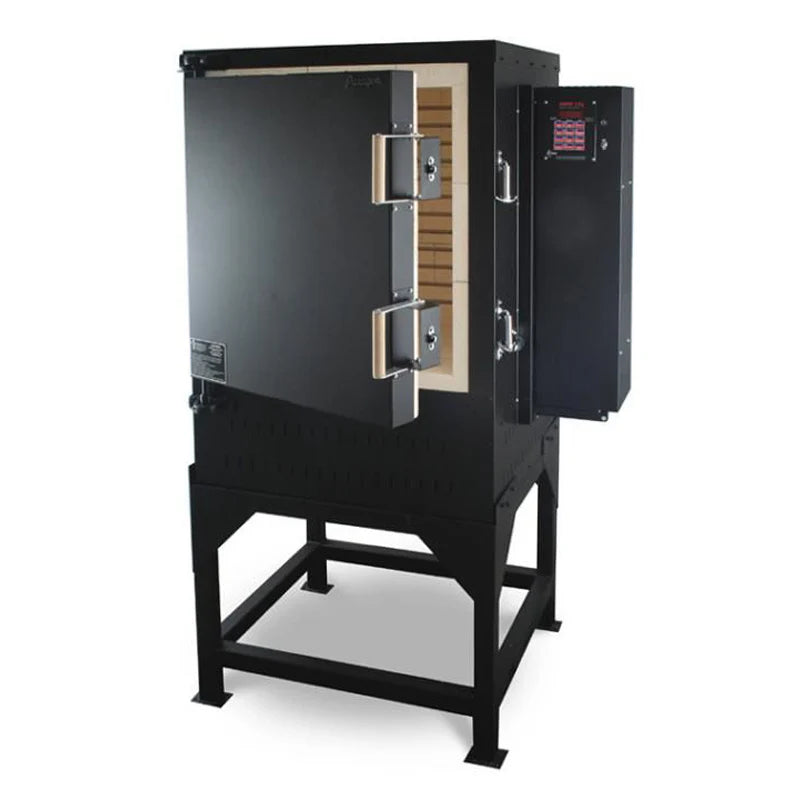

Paragon Dragon
The Dragon is an industrial furnace designed for pottery and ceramic studios. And considering its features, it is surprisingly affordable. Potters who struggle with top-loading kilns will enjoy the Dragon.
The door swings open wide on a heavy ¾” steel rod with sealed bearings. Two spring-loaded latches press the door tightly closed. The Dragon exudes power. Its 16,500 watts heat the 24” wide, 24” deep, 27” high interior to cone 10 with ample power to spare. This results in long element life, because the elements do not “struggle” to reach high temperatures.
Dropped, recessed grooves seat industrial-gauge elements for long life. The elements are “tuned,” which means hotter elements are placed in areas of the firing chamber that need more heat. This results in superior heat distribution.
Do you ever wonder how much electricity your kiln uses? The digital controller will figure this for you; merely program the kiln’s wattage and your cost of electricity into the controller. Learn to conserve energy by experimenting with firing speed, load density, etc. Extra insulation saves energy and lengthens cooling. The 4” thick walls, top, and door are made of 3” firebrick backed by 1” of ceramic fiber block insulation. The floor is 4 ½” thick firebrick. The inner door is recessed to help seal in the heat. Because these kilns store heat so efficiently, elements last longer. The extra insulation not only saves energy but also cools the kiln slowly without having to turn the elements back on. This gives the micro-crystalline structure and color of the glaze sufficient time for full development.
Cool slowly to achieve dramatic shifts in glaze color such as iron reds and enjoy the richer look of gas firing. Create breathtaking pottery in this exciting kiln.
The Sentry 2.0 digital controller is standard on Paragon front-loading pottery kilns. Results are repeatable from one firing to the next with astounding accuracy. The solid-state controller continually monitors the firing. This is almost like hiring an assistant. The Type-K thermocouple, hermetically sealed for accuracy, is standard. We also recommend the optional Type-S for stoneware and porcelain. Long-lasting mercury relays power the elements. A bank of built-in NEC/UL compliant high-amperage fuses protects the kiln and circuit wiring.
The ventilated switch box is generously louvered for air circulation for the long life of the electrical components. Yet dust is kept to a minimum. Hinged at the bottom, the switch box opens wide for easy maintenance. Open the box in seconds by merely removing two screws at the top. A folding support arm holds the box in the open position. There is plenty of working space around electrical components when you use this Paragon ceramic kiln.
The 24” tall stand is also available with casters for easy moving. The stand is priced separately from the Dragon.
Please see options for other stands available for the Dragon. When ordering a Dragon, specify whether the stand is to ship separate from the Dragon or pre-installed and shipped as one unit. Doorway Clearance The Dragon will fit through a 34” doorway if the handles and back element cover are temporarily removed.
Dragon Features
Saves electricity with extra insulation Cone 10, 2350°F 3” insulating firebrick and 1” non-organic block insulation in walls, top and door: 4” total thickness 4 ½” thick firebrick bottom 9 cubic foot Interior: 24" wide x 24" deep x 27" tall
Long-lasting mercury relays Type K thermocouple with ¼” sheath, or optional Type-S Sentry 2.0 controller with programmed cool-down Case temperature at cone 10: 170°F (compared to 400-500°F for standard firebrick kilns)
Two 1” non-tapered peepholes in the left side of the kiln 1” space between switch box and kiln keeps electrical components cooler for long life. Hinged switch box opens easily for maintenance. UL/CUL & NEC compliant fuses for safety Available in 200, 208, 220, 240, 480 v, 1 & 3 phase
Proportional power elements for more even heating
The Optional Furniture Kit
The furniture kit consists of carefully selected fireclay shelves and posts for this particular model. When estimating the price of the kiln, include the cost of furniture. The furniture allows you to stack multiple layers of ware. Without it, you could fire only the ware that would fit on the kiln bottom.
Optional Dragon Furniture Kit 1 C-30 Shelf 4 - C30H ½ Shelf 1½” wide Square Posts, 8 each of - 4”, 6”, 8” lengths 1 lb. Bag Kiln Wash Furniture Kit Shipping Weight: 130 lbs.
Designed for production Paragon’s warranty is not affected by frequency of use. Fire your new kiln every day if you want, even in commercial settings. That will have no effect on the warranty period.
Optional colors at no extra charge Brighten your studio with color! Order your kiln in one of our standard colors at no extra charge . . . berry, black, blue, hot pink, jade, navy, purple, or turquoise.
Specifications
|
Max. Temperature
|
1287C
|
|
Amps
|
69
|
|
Phase
|
1
|
|
Watts
|
16500
|
|
Nema
|
DIRECT
|
|
Breaker Size
|
75
|
|
Circuit Copper Wire Size
|
4 gauge
|
|
TUV tested to CSA and UL Standard 499
|
Y
|
|
CE
|
Y
|
|
IMPORTANT: Some areas such as Canada and Europe require a lid or door safety switch on kilns.
|
|
|
Control Type
|
Sentry Digital 12-key Ceramics
|
|
Voltage
|
240
|
|
Hertz
|
60
|
|
Disclaimer: The specifications above assume that the kiln will be plugged into a dedicated circuit. Local electric codes supersede our recommendations.
The pricing and electrical specifications for the above products reflect their design for use in the United States. The International versions of most models will have variations in electrical specifications and price due to consumer safety requirements or electrical regulations.
|
|
|
|
Kiln Type
|
Front Loading Square
|
|
Sides
|
4
|
|
Understanding Chamber Measurements
|
|
|
Chamber Volume
|
9.00 CU.FT. 254.85 litres
|
|
Chamber Width
|
24.00 IN 610 mm
|
|
Chamber Depth
|
24.00 IN 610 mm
|
|
Chamber Height
|
27.00 IN 686 mm
|
|
The Outer Size of the Kiln and the Shipping Size: Width = Left to Right; Depth = Front to Back; Height = Top to Bottom
|
|
|
Outer Size
|
43.80W x 39.30D x 69.00H Inches 1113W x 998D x 1753H mm
The external kiln height includes a 24" tall stand.
|
|
Ship Size
|
50.00W x 50.00D x 77.50H Inches 1270W x 1270D x 1969H mm
|
|
Ship Weight
|
905.00 Lbs.
410.51 Kg.
|
|
Ship Method & Notations
|
This Kiln Ships Via Truck
|
|
