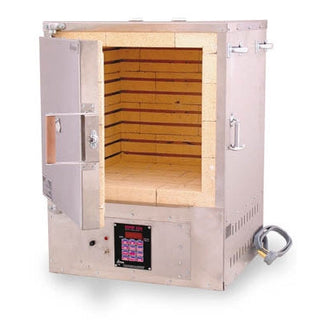

Paragon W-18 Wax Burn-Out Oven Kiln
China Painting Decals Enameling Lost Wax Casting Low-Fire Ceramics

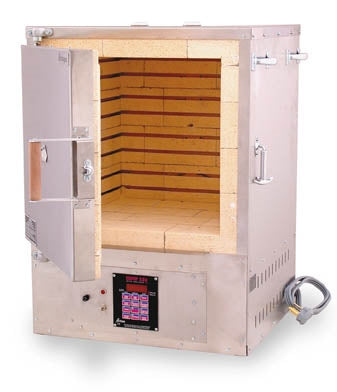

W-18-3 Digital Jewelry Kiln T
The W-18-3 Paragon jewelry kiln is made of durable insulating firebrick. The digital controller saves time, makes casting more reliable, and gives consistently repeatable results. The 12-key Sentry controller has 3 built-in, easy-to-use programs. You can also enter your own programs for your exact needs. Included with the wax burnout oven is an on-off toggle switch. The W-18-3 has a heavy-gauge stainless steel case to resist corrosion. Heating elements are recessed to protect the element, yet the element is still accessible for easy replacement. This wax burnout oven also includes a top vent with ceramic plug for lost wax. A spring door latch tightly seals the door while permitting easy opening with one hand for removal of hot flasks.
You can also enter your own programs with up to 20 segments for your exact needs. This electric jewelry kiln includes an on-off toggle switch. This Paragon jewelry kiln has a heavy-gauge stainless steel case to resist corrosion. Heating elements are recessed to protect the element, yet the element is still accessible for easy replacement. This furnace also includes a top vent with ceramic plug for lost wax burnout.
Max. Temperature
|
1700F 926C
|
1700°F Maximum Temperature 240 Volts / 1 Phase / 60 Hz 27 Amps 6400 Watts
|
|
Nema
|
6-30R
|
Breaker Size
|
30
|
Circuit Copper Wire Size
|
10 gauge
|
TUV tested to CSA and UL Standard 499
|
N
|
CE
|
N
|
IMPORTANT: Some areas such as Canada and Europe require a lid or door safety switch on kilns.
|
Control Type
|
|
Voltage
|
220
|
Hertz
|
60
|
Nema Details
|
|
Disclaimer: The specifications above assume that the kiln will be plugged into a dedicated circuit. Local electric codes supersede our recommendations.
The pricing and electrical specifications for the above products reflect their design for use in the United States. The International versions of most models will have variations in electrical specifications and price due to consumer safety requirements or electrical regulations.
|
|
Kiln Type
|
Front Loading Square
|
Sides
|
4
|
Understanding Chamber Measurements
|
|
Chamber Volume
|
3.37 CU.FT. 95.43 litres
|
Chamber Width
|
18.00 IN 457 mm
|
Chamber Depth
|
18.00 IN 457 mm
|
Chamber Height
|
18.00 IN 457 mm
|
The Outer Size of the Kiln and the Shipping Size: Width = Left to Right; Depth = Front to Back; Height = Top to Bottom
|
Outer Size
|
24.00W x 27.00D x 31.00H Inches 610W x 686D x 787H mm
|
Ship Size
|
34.00W x 34.00D x 43.00H Inches 864W x 864D x 1092H mm
|
Ship Weight
|
320.00 Lbs. 145.15 Kg.
|
Ship Method & Notations
|
This Kiln Ships Via Truck
|
|
|
|
|
Part Number
|
W18-13 * Base Model
|
|
