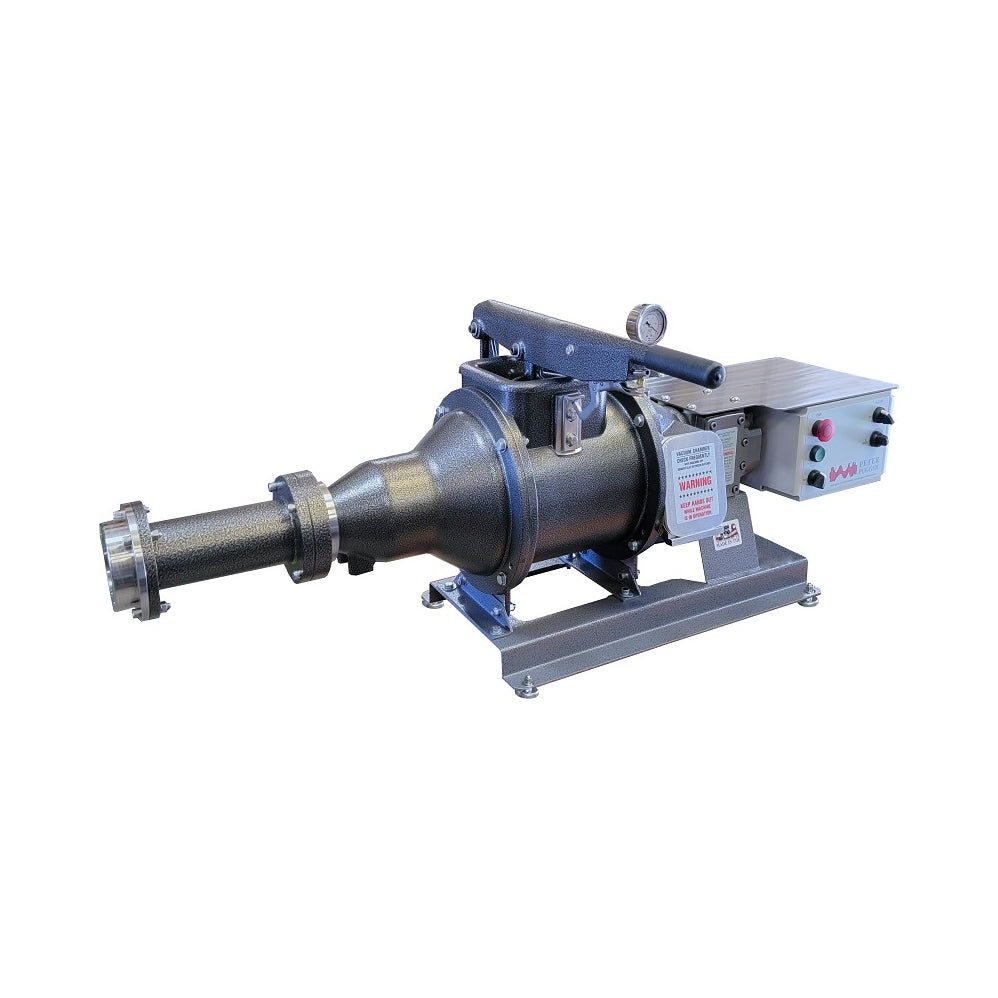

Peter Pugger High Compression Mixing Pugmill VPM-20HCSST
Peter Pugger has developed a high compression pugmill line capable of filling/loading 3D canisters (tubes) with truly deaired material.
The efficiency of filling tubes using air-free material, produces higher yield, saves time/energy and results in a higher quality product. Our patented deairing process eliminates downtime associated with clogged vacuum chambers, vacuum screens and plumbing due to the enormous amount of back pressure generated while filling 3D canisters. The VPM-20SSHC utilizes all the latest advancements in mixing, deairing and extruding technology.
The development of a high compression zone and 3D adapter for mounting canisters lands the VPM-20SSHC High Compression Pugmill in a class of its own. Additive manufacturing, also known as 3D Printing, is an automated process used to create rapid prototypes and functional end-use parts.
It takes virtual designs from computer-aided design (CAD) software and transforms them into thin, virtual, horizontal layer-wise cross-sections until the model is complete. Multiple applications of 3D Printing across various end-user industries, such as ceramics, automotive, aerospace, defense, healthcare, construction, and architecture continue to advance. Metals, plastics, and ceramics are some of the media being used in conjunction with 3D Printing.
Maximum Batch Capacity*: 45 pounds
Pugging Rate: 600 lbs. per hour
Mixing Rate: 180 lbs. per hour
Dimensions: 52″L x 14″W x 14″H
Crated Weight: Stainless Steel Version – 310lbs Ships Freight
Hopper Door Size: 7″ x 7″
Pug Size: Varies
Electrical: 1 HP 1-phase, 10 amps at 120 volts, 8 amps at 240V
Vacuum Pump: 1/2 HP, (operates off main electrical)
*Max Batch Capacity may vary depending on material density and moisture content
