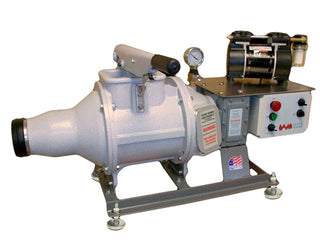

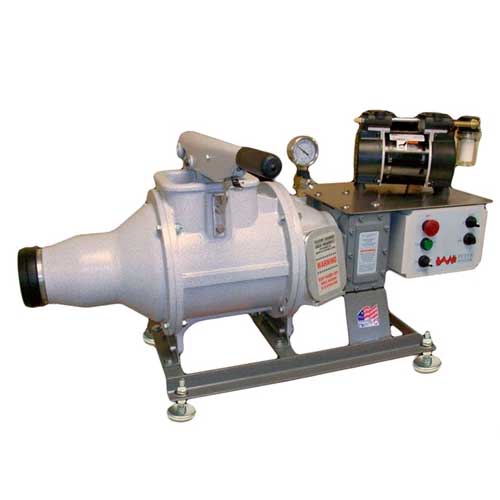

VPM20 PETER PUGGER PUGMILL / Clay Mixer
Here you can order a vacuum de-airing VPM20 Pugmill Mixer by Peter Pugger at Sheffield Pottery Ceramic Supplies.
VARI-SPEED NOW STANDARD ON VPM9 and VPM 20 !!!
Throw any combination of unfired clay into the machine, shut the door and hit mix. The machine now has the ability to provide real-time monitoring of the clay consistency as it is being processed in the machine. As the clay softens, the Pugger-Mixer responds by accelerating up to twice the speed as previously offered. Yes, we have the fastest cycles times on the market, but why stop there!
FEATURES
The Vacuum Power Wedger combines the capability of batch mixing with the convenience of pugmill output and the ease of vacuum deairing.
All your scrap goes right back into the hopper and is recycled, vacuum deaired and pugged.
Stainless Steel:
Shaft, augers and paddles of stainless steel, along with aluminum mixing and pugging chambers, ensure rust-free clay processing.
Large Hopper:
The oversized hopper door allows for easy loading of up to 45 lbs. of clay per batch.
Batch Mixing Capability:
Full batch mixing and blending capability allows for moisture adjustment before pugging.
Pugmill Output:
Switch to PUG after a batch is completely mixed, and the Power Wedger unloads itself in the form of 3" diameter deaired logs.
Vacuum Deaired:
Each batch can be deaired by starting the vacuum pump when the load is mixed. Air is removed during the last stage of mixing, leaving an air-free product when pugged out.
Sealed Chamber:
Leaving moist clay in the Power Wedger is not a problem. All the openings are sealed so clay will stay moist indefinitely.
Intellectual Mixing Technology:
Real-time monitoring of clay consistency can be accomplished while mixing. Similar to an automatic transmission, the Pugger-Mixer can automatically speed up or slow down based on the hardness of the clay being processed. The operator can also control the speed by controlling the variable speed knob.
Variable Speed Control Option:
This allows the operator the ability to speed up or slow down the pugmill. This is especially useful when extruding through dies. Because of the back pressure generated by a large amount of clay being forced through a small orifice, the speed control allows the operator to slow the pugging as required. In turn, perfect deaired configurations are easily extruded through the Pugger-Mixer. There are additional advantages if you are a "single potter studio". The ability to slow the pugging allows for time to place pugged clay into containers or bags.
Stainless Work Surface:
The stainless steel work surface creates a durable work surface for convenience of the operator while loading. The work surface is 12" x 16".
Optional Stand:
This heavy duty stand has a shelf, and the height is adjustable. Wheels are included and can be installed on the motor end of the VPM-20 stand for easy transport.
CAPABILITIES
The Power Wedger is the most versatile studio clay processing machine on the market today. It can perform a variety of functions efficiently, transforming clay in any form to a usable product.
When the clay is adequately mixed, it can be deaired with vacuum and pugged out in the form of logs ready for use
SAFETY
It is not necessary to continuously hand-feed the Power Wedger as with standard pugmills. Load a full batch, close the lid and turn it on - this eliminates exposure to moving blades. The Power Wedger shuts off automatically when the lid is opened. All machines are equipped with a thermal overload for protection against overheating.
VACUUM PUMP
Vacuum is provided by a 1/3 HP double-headed rocking piston type diaphragm pump. These new technology pumps are the simplest and quietest vacuum source available. They are maintenance-free and long lasting. The VPM-20 Power Wedger does not require a large vacuum pump because the clay is continuously exposed to vacuum in the sealed mixing chamber. Once the clay chamber is evacuated, the vacuum pump can be turned off.
CLEANING
The nozzle and the mixing chamber on the VPM-20 are removable so they can be conveniently washed off. The blades are then easily accessed for cleaning.
Cleaning is necessary only to avoid cross-contamination. Since the machine is completely sealed, it can be left for long periods of time without the clay drying out.
SHIPS FOB Ukiah, CA 95482, USA
- Maximum Batch Capacity*: 45 pounds
- Pugging Rate: 600 lbs. per hour
- Mixing Rate: 180 lbs. per hour
- Dimensions: 42?L x 14?W x 20?H
- Crated Weight: Aluminum Version – 230 lbs. (Ships LTL Trucking)
- Hopper Door Size: 7? x 7?
- Pug Size: 3? round
- Electrical: 1HP 1-phase, 6 amps at 120 volts, 4 amps at 240V
- Vacuum Pump: 1/2 HP, 3 amps at 120 volts, 2 amps at 240V
*Max Batch Capacity is based on material density and moisture content
