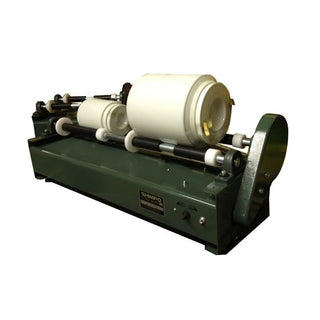

Shimpo Ball Mill PTA-02

Shimpo Ball Mill PTA-02

PTA-02 is heavy-duty ball milling machines enable very precise milling, in porcelain jars, even for relatively tough materials, wet or dry. The PTA-02 ball mill has a compact design that is ideal for small-scale production and is constructed using powder-coated steel for long-lasting durability. The PTA-02 can handle two jars. Easy adjustments can be made to the sturdy roller bars to accommodate jars from 1-liter to 10-liters. Each milling machine comes standard with a breaker switch.

Ball mills have been used for decades to grind and mix materials used in the ceramic industry. Shimpo's heavy-duty ball milling machines enable very precise milling, in porcelain jars, even for relatively tough materials, wet or dry. Shimpo ball mills have a compact design that is ideal for small-scale production and is constructed using powder-coated steel for durability. The accommodates one jar, the PTA-02 can handle two jars. Easy adjustments can be made to the sturdy roller bars to accommodate jars from 1-liter to 10-liters. Each milling machine comes standard with a breaker switch.

Ball mill :
115 Volts
180 Watts
38" x 17" x 14"
Adjusts to fit a variety of jars (sold separately).
RPM 1-Liter 64.0 rpm 2-Liter 53.4 rpm 3-Liter 45.7 rpm 5-Liter 40.0 rpm 10-Liter * 32.0 rpm

Porcelain jars (sold separately) include grinding media and available in
1 liter
2 liter
3 liter
and 5 liter sizes.

10 liter jars are available by special order

See the PTA-01 if you need a smaller machine.

Motor PTA-01 - 115V (60Hz) 180W, PTA-02 - 115V (60Hz) 180W
Dimensions PTA-01 - 21" x 17" x 14", PTA-02 - 38" x 17" x 14"
Ship Weight PTA-01 - 110 lbs, PTA-02 - 120 lbs

OPTIONAL BALL MILL PORCELAIN JARS
Ball mill porcelain jars fit on the PTA-01, PTA-02, BALL MILL RACK ATTACHMENT .
1-Liter Jar Includes about 40 balls ranging from ½" - 1" in diameter (Mixed) Dimensions 5 ¾" D x 8 " H
2-Liter Jar Includes about 60 balls ranging from ¾" - 1 ¼" in diameter (Mixed) Dimensions 7" D x 9 ½" H
3-Liter Jar Includes about 40 balls ranging from 1" - 1 ¼" in diameter (Mixed) Dimensions 8" D x 11" H
5-Liter Jar Includes about 60 balls ranging from 1" - 1 ¼" in diameter (Mixed) Dimensions 9 ½" D x 12 ½" H
10-Liter Jar Includes 120 balls ranging from 1" - 1 ¼" in diameter (Mixed) Dimensions 12" D x 14" H
