SHIMPO PUGMILL NRA-04
NRA-04 Pugmill

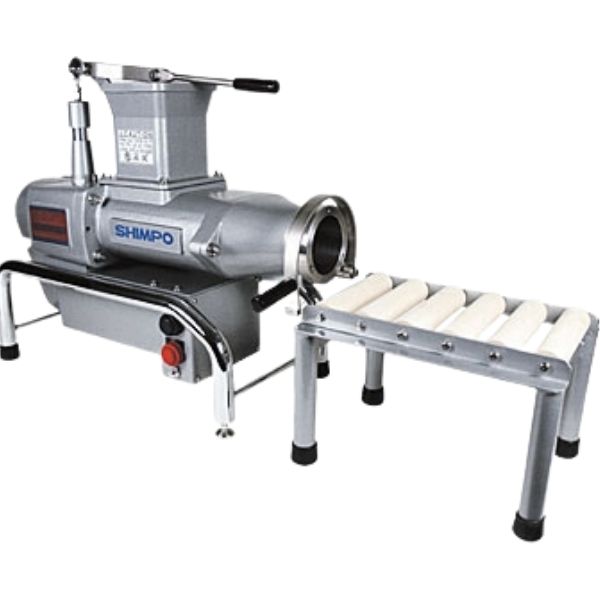

The Shimpo NRA 04 pugmill features newly designed twin augers and a forceful direct gear driven motor. It's high quality wedging and extruding capacity obtained produces air-free clay and increases clay workability that make this compact clay pugmill one of the most efficient and competitive on the market
The NRA-04 pugmill includes high quality stainless steel nozzle, auger case, and rollers.
| Forceful Direct Gear Driven Motor | Provides maximum mechanical force for blending requiring minimum operator effort |
| High Extruding Capacity | Twin stainless steel mixing augers blend and extrude up to 620 lbs/hour |
| High Quality Wedging Function | Newly designed twin augers, typically found only in large industrial machines, increase wedging capacity and produces practically air-free clay without a vacuum |
| Dual Safety System | Safety limit switch automatically cuts power to pugmill when augers are exposed. Stop button allows for immediate operator control |
| Compact Design | Removable aluminum or stainless steel case allows for easy access to mixing chamber for fast and easy clean-up and maintenance |
| Cut Off Wire & Clay Receiving Table With Rollers | Allowing for easy bagging of extruded clay |
| Warranty | 5-year |
| Motor | ¼ HP, 200 W, 115 VAC, 60Hz, single Phase |
| Extruding Capacity | 880 lbs./hour |
| Nozzle Diameter | 3 ½ diameter |
| Hopper Size | 3 ½ x 3 ½ |
| Dimensions | 25 ½" x 12" x 22 ½" |
| Weight | NRA-04: 210 lbs. | NRA-04S: 232 lbs. |
NRA-04/04S Pugmill data sheet
Download Data Sheet
NRA-04/04S Pugmill manual
Download Manual
Features
- Forceful Direct Gear Driven Motor / Provides maximum mechanical force for blending requiring minimum operator effort
- High Extruding Capacity / Twin stainless steel mixing augers blend and extrude up to 620 lbs/hour
- High Quality Wedging Function / Newly designed twin augers, typically found only in large industrial machines, increase wedging capacity and produces practically air-free clay without a vacuum
- Dual Safety System / Safety limit switch automatically cuts power to pugmill when augers are exposed. Stop button allows for immediate operator control
- Compact Design / Removable aluminum or stainless steel case allows for easy access to mixing chamber for fast and easy clean-up and maintenance
- Cut Off Wire & Clay Receiving Table With Rollers / Allowing for easy bagging of extruded clay
- One Year Warranty Peace of mind
