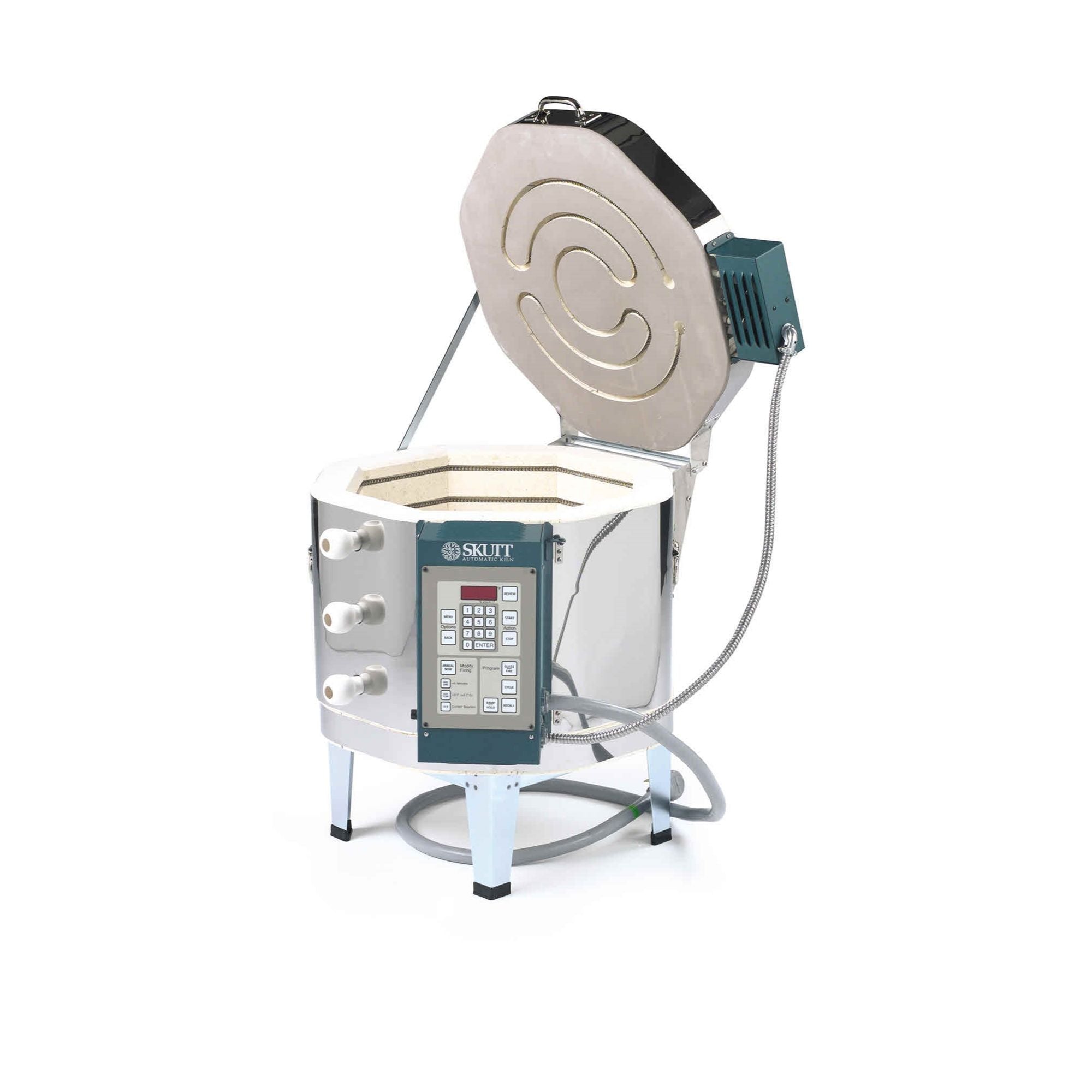

Skutt Studio GM814 Glass Fusing Kiln

Skutt Kilns : Glass Fusing Kiln: Studio GM814

Choose the optional Touch Screen Controller upgrade for the ultimate and ease and precision in your glass firing.

Great Studio Kiln

This kiln is a great size. it wont take up too much room in your studio yet holds the majority of work produced by a small studio.

Balanced Elements

As most of you probably already know, glass is very susceptible to uneven heating. The more uneven the heat is in the kiln chamber, the slower you need to fire the kiln. Side fired kiln owners understand this, and are willing to trade the disadvantages of having to slow their programs down for advantages of being able to fire on multiple levels.

Our Studio Kiln Series have lid elements and side elements. This does not mean you can fire on multiple levels. The side elements are there to replenish heat on the bottom of the kiln. This not only keeps the shelf warm (which is important), it also provides for uniform heat top to bottom for artists working with deep molds and drop molds.

VOLTAGE PHASE WATTAGE AMPERAGE MAX TEMP DIMENSIONS
240 1 6672 27.8 1800F W17.5” X D13.5”

• GlassMaster Controller
• Lid and Side Fired Elements
• Low Mass Type K Thermocouple.
• Easily Fits 16" Shelf
• 8 " Stand
• Hinged Control Box
• Porcelain Peep Plugs

GM CONTROLLER

Sophisticated, Yet Easy to Use

• The GlassMaster Controller is the only controller on the market with GlassFire Mode. GlassFire Mode allows you to run a program simply by entering the type of effect you want: Fuse, Tack Fuse or Slump and a speed based on the size and thickness of the project. It really is that easy and it works on most projects.
• If you prefer to write your own firing programs simply use the Ramp/Hold programming mode which can store up to 8 of your custom programs with up to 8 Segments. When you are ready to use one of your stored programs just load it and press start.
• Built in Diagnostics give you or our technicians the ability to diagnose kiln problems with just a few button presses.
• Active Keys allow you to make adjustments to the program while it is running based on a visual inspection. The Anneal Now key allows you to skip to the annealing phase of the program with a single key press. Add Time allows you to add 5 minutes to the final heating segment of the program if your project needs more time and Add Temp allow you to increase the temperature in the final heating segment if you want the glass to get hotter.

ABOUT THE OPTIONAL TOUCH SCREEN CONTROLLER UPGRADE

Skutt KMT Kilns include the Touch Screen Controller. Like a smartphone, the new KMT controller navigates with just a touch of a finger and allows us to guide you through programming with full sentences, helpful icons, and dynamic navigation.

Built-in WiFi makes it possible to download any software feature upgrades for free so it is like having a new Kiln Controller for the life of the kiln.

A Free App works in conjunction with the WiFi and allows you to monitor your kiln temperature and status from your smartphone.Think how comforting it will be not to get out of bed to be sure your kiln shutoff as expected.

The Hinged Controller allows you to move the controller up and down to an angle that is comfortable for you to program. No more getting on your hands and knees. After programming you can push it back down so it is out of your way and easy to view from across the room.

It has the Same Functions you have come to know and love from the standard KilnMaster Controller Plus More!
ADD THIS OPTION WITH CHECK BOX ABOVE
