SKUTT KM1227-3 KILN
Finally, an electric kiln line designed specifically for volume production and fast turnaround of high mass loads. It has the power and industrial components to go straight to temperature with a full load of tile or stoneware – no slow struggling to reach the final temperature. The standard KilnMaster controller gives you the options of Cone Firing or selecting your own 8-segment Ramp/Hold firing programs. The combination of direct wiring, heavy duty elements, connectors and relays, plus traditional Skutt stainless steel and firebrick construction results in a kiln that will last for years of constant use. Among the most powerful on the market today, the line was designed at the request of Skutt customers.

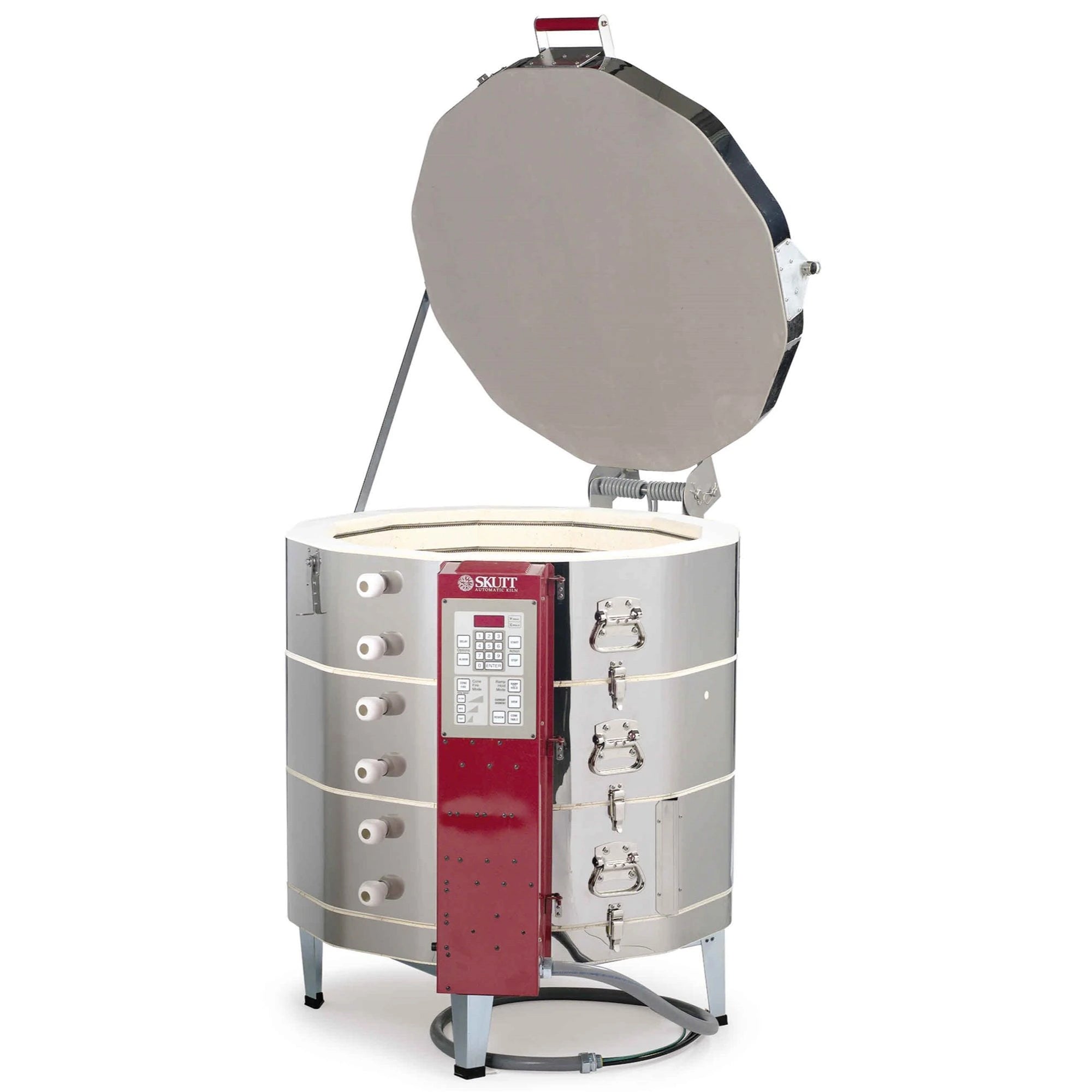

Skutt KM1227-3 Electric Kiln
Automatically the top producer.
This is the perfect automatic single phase electric kiln for high production, with nearly 10 cubic feet of loading capacity. For those who fire the same program for many loads, you need simply to load and start one of your six stored programs, and go back to work on your next batch. The KilnMaster will handle all the firing details with truly superhuman precision, ensuring that you will get superb consistency, load after load. If your KM1227-3 is fitted with a Skutt EnviroVent, you can plug all the peepholes, program a Delay to start your firing at night, and be there for shut-off and unloading the next morning. You get more sleep, and much more production. Available in three phase models.
The Skutt KM-1227-3 Electrical Requirements
240 Volts 48 Amps 11520 Watts
208 Volts 48 Amps 9980 Watts
Copper Wire Size: 6
Breaker Size: 60
NEMA Receptacle Configuration: 6-50
Includes New Skutt Lid Lifter
Now all 10 and 12-sided KilnMaster Kilns come standard with a Skutt Lid Lifter.
The New Lid Lifter makes our 10 and 12-sided lids some of the lightest on the market. In fact you can now lift them with just a finger. The lid brace has been redesigned for added strength and now has 2 positions. The innovative Center Pivot Design distributes the force on the lid across 2 points as opposed to only one.
It ships fully assembled on the kiln. And unlike some other brands there is no awkward loading of the springs required. The kiln remains completely sectional for moving and repairs. The lid can be effortlessly and safely de-tensioned by simply raising the lid and sliding out the tension rod. It really is that easy!
- So Light You Can Lift It With A Finger
- New Reinforced 2 Position Lid Brace
- Innovative Center Pivot Design
- Ships Fully Assembled
- No Tension Loading Required
- Does Not Affect Sectional Construction
- Ceramic Handle Remains Cool
- All Corrosion Resistant Parts
| Model - Voltage |
Phase | Inside Dimensions | Cu. Ft. | Cone/Max Temp | Amps | Watts | Breaker Size |
NEMA Plug | Ship Wt. (lbs.) |
| KM1227-3 240V | 1 | 28.13" x 27" | 9.9 | 8/2300˚F | 48 | 11520 | 60 | 6-50 | 400 |
| KM1227-3 208V | 1 | 28.13" x 27" | 9.9 | 5/2185˚F | 48 | 9980 | 60 | 6-50 | 400 |
| KM1227-3 240V | 3 | 28.13" x 27" | 9.9 | 8/2300˚F | 29.3 | 11520 | 40 | 15-50 | 400 |
| KM1227-3 208V | 3 | 28.13" x 27" | 9.9 | 8/2300˚F | 31.7 | 11000 | 40 | 15-50 | 400 |
