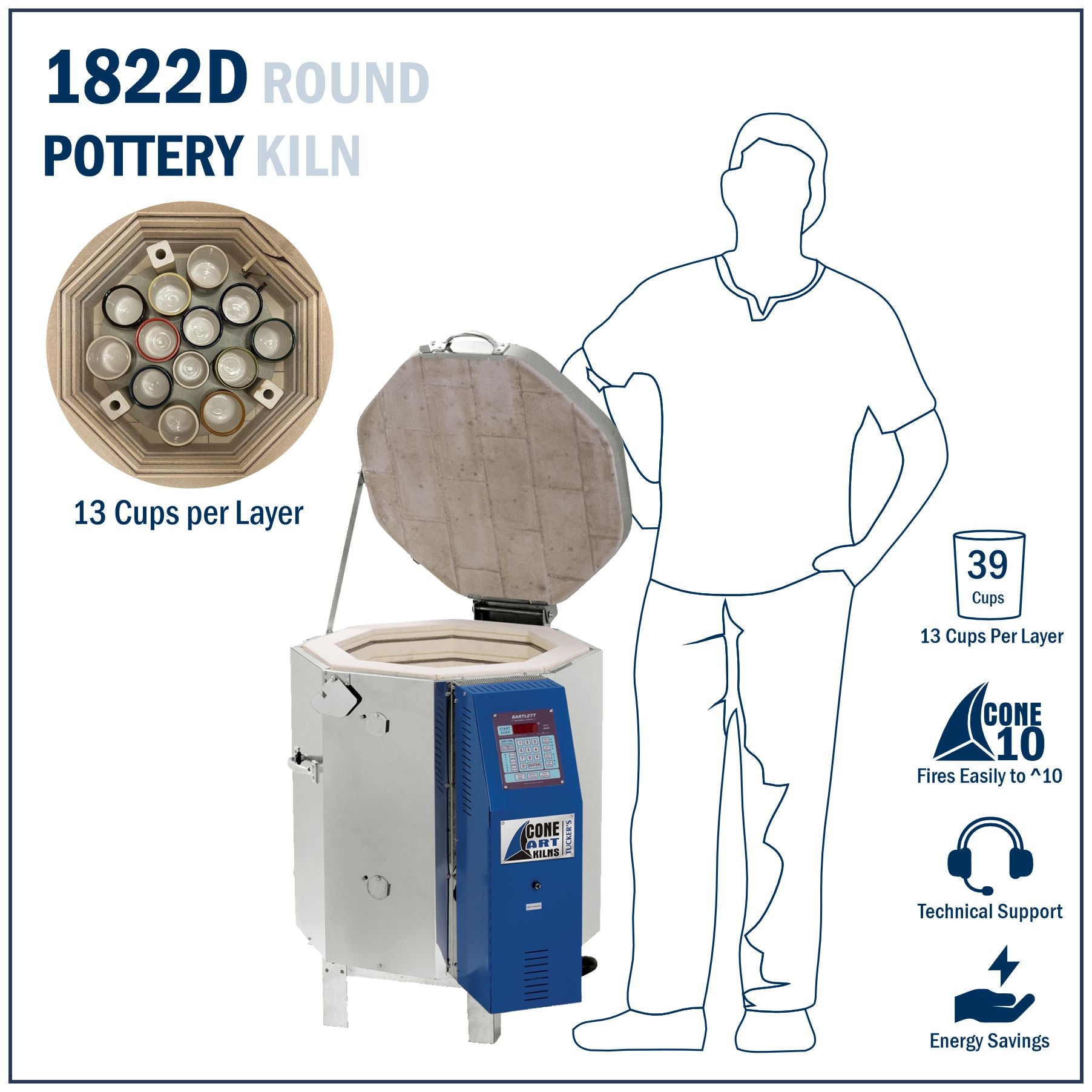

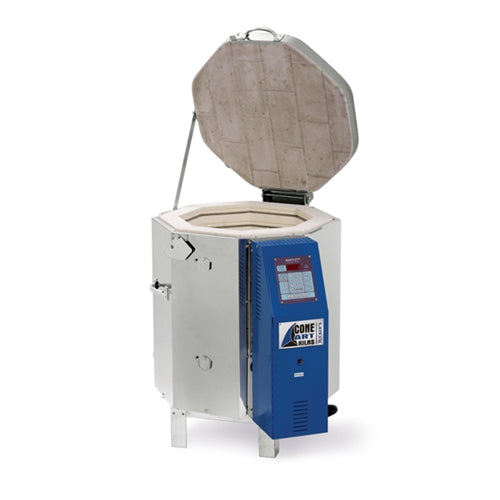

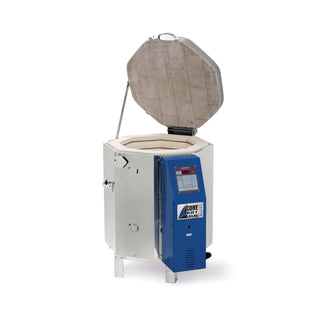

CONEART BX1822D Double Wall ROUND CERAMICS KILN
Model BX 1822D
- 3.3 cubic feet
- 17.5"across X 22.5 deep
- Double wall construction
- Kanthal A-1 Elements
- 208 & 240 Volts
- 40 amp breaker required
- CSA approved
This Cone Art BX1822D kiln is an excellent choice for the home studio or school. It is a double insulated kiln with 2 ½" of premium firebrick plus 1" of block insulation. This double wall insulation ensures a safer, cooler jacket and approximately 30% energy savings over single wall kilns.
The heavy-duty Kanthal A-1 elements are standard along with a floor element for more even firings.
The jacket and fittings of the home ceramic kiln are all stainless steel or corrosion resistant metal.
The BX1822D is equipped with the Bartlett V6 2 Zone electronic controller which is mounted on an angled easy view control panel. The extra zone control comes standard at NO EXTRA CHARGE for excellent temperature control.
The Tucker’s Cone Art BX1822D sets the standard for excellence in quality construction and reliability.
Optional Extra Furniture Kit
Three 15.5" dia. full shelves
One 15.5" dia. half shelf
Three each of 1 3/4" square X 1",2",4",6" posts
Two kilograms kiln wash
All shelves and posts are high alumina,rated for cone 11.
SPECIFICATIONS
| PHASE | VOLT | INSIDE DIMENSIONS |
OUTSIDE DIMENSIONS |
SECTIONS | CUBIC FEET | AMPS | BREAKER REQUIRED |
CU WIRE GA(AWG) |
KILOWATTS | SHIP WT LBS | MAX CONE | MAX TEMP |
| 1 | 240 | 17.5 x 22.5 | 24.5 x 27.5 | 1 | 3.30 | 32.00 | 40A | 8 | 6.70 | 240.00 | 10 | |
| 1 | 208 | 17.5 x 22.5 | 24.5 x 27.5 | 1 | 3.30 | 32.00 | 40A | 8 | 6.70 | 240.00 | 10 |
