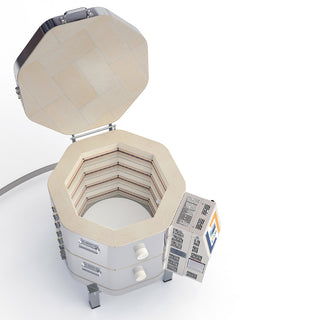

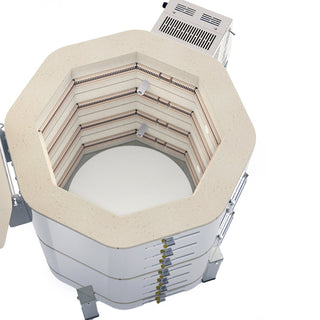

L&L Easy Fire Kiln 18S-3
About the Easy-Fire Kilns e18S • e18T • e18S-3 • e18T-3
Ask about our professional inside delivery and setup in the Northeast Region and beyond!
L&L E18S Brick Kiln Features
Temperature Rating: Cone 10, 2350°F, 1290°C
Loading: Lid position, when open, rests at an angle away from the kiln. Chains are used to secure the lid in place when open.
Hinge: The hinge is not spring-loaded.
Stand: Heavy-duty 14 gauge full solid stand with multiple bends for strength. Bolt on legs. Feet protectors included.
Assembly: Two or three 9” high sections stack on top of each other. Easy
to assemble. Bottom is reversible.
Construction: Stainless steel wrapped around brick with 3 clamps on each section. All stainless screws.
Insulation: 3” K23 firebrick.
Brick Coating: Reflective coating protects brick and reduces dusting.
Element Holders: Hard ceramic element holders protect brick.
Elements: Heavy-duty. 2 elements per 9” high section.
Element Connections: Proprietary all-ceramic element connection block
makes changing elements easy.
Control Panel: All controls and components are mounted in a separate control panel that is piggy-backed to the element connection box. A layer of insulation and this separation helps keep the controls cool. The
control panel and element box are hinged for easy access and maintenance. Control box can be easily removed for servicing. On/off switch and control use are included.
Control: DynaTrol with 4 Easy-Fire programs, 6 Vary-Fire programs, PreHeat, Delay, Program & Segment Review, and Diagnostics.
Zone Control: Two or three zones with separate thermocouples.
Peephole Plugs: Non-fragile solid ceramic with heat-locked head. 1” diameter full-view non-tapered. One per section.
Thermocouples: Type K 8 gauge with ceramic protection tubes.
Relays: Mercury free relays.
Power Cord/Plug: 50 Amp NEMA 6-50 six foot cord included for one phase, 50 Amp NEMA 15-50 six foot cord included for three phase.
Instructions: Complete visual instructions with control reference, process information, assembly, troubleshooting, and parts list. In addition a web videos show how to assemble the kiln and how to fire it. (https://www. youtube.com/user/LLKilns#p/u)
Warranty: Limited 3 year warranty. (See hotkilns.com/warranty.pdf ).
UL Listing: c-MET-us listed to UL499 standards.
Easy Fire Kiln Options
Furniture Kits:
Thermocouple Options: Type S platinum or 1/4” pyrocil metallic sheathed
Vent System: Vent-Sure downdraft vent
