You are browsing gas kilns, raku kilns, Olympic Kilns.

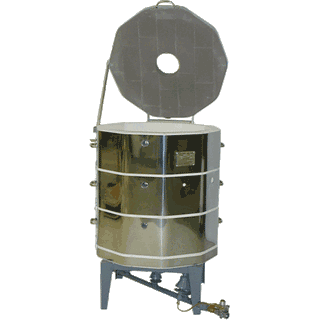

This is a2327-OLYMPIC TORCH BEARER KILN /NATURAL GAS or PROPANE With Burners and Ignition Ring2327G with Ignition System and Thermocouple Safety Shut-off
Model - 2327G/Ign Syst/Propane or Natural Gas
Inside dimensions: 23 3/8" wide x 27" deep, fires to cone 10/2350°F
Model comes with burner system, three peephole plugs, brick for covering porthole on top during reduction, instruction manual, and warranty card. The ignition system with thermocouple safety shut-off is an option and the kiln may be purchased as a Base kiln.
One-year warranty. Note: The prices shown for the Torchbearer and Raku kilns here include the Ignition Ring with Thermocouple Safety Shut-off
which adds a high degree of safety. We can supply these kilns without the Ignition ring but we feel that for safety's sake these should always be installed.
The price with out the ignition ring are $300 less for 28" kilns and $250 less for all others.
The ignition system is used to:
- Light the multiple burner system from one point
- Maintain the flame on each burner
- Re-ignite any burner that may
extinguish
The thermocouple safety shut-off will stop the gas flow if the flame is lost entirely.
| Inside Dimension | |||||||||||
| Model | Inches (Width) |
Inches (Depth) |
Cubic Feet | Maximum Temperature |
BTU/ BUR x1,000 |
Max BTU/ Input | Gas Line Inlet |
Orifice Size Natural Gas |
Orifice Size Propane | No. of Burners | Shipping Lbs. |
| 18 RAKU | 17 - 1/2 " | 22 - 1/2 " | 3.29 | 2350°F/Cone 10 | 60 | 120,000 | 3/4 " | 1/8 | 3/32 | 2 | 225 |
| 23 RAKU | 23 - 3/8 " | 27 " | 7 | 2350°F/Cone 10 | 80 | 240,000 | 3/4 " | 9/64 | #40 | 3 | 315 |
| 28 RAKU | 28 - 1/4 " | 27 " | 10 | 2350°F/Cone 10 | 70 | 280,000 | 3/4 " | 9/64 | #40 | 4 | 480 |
| 1827G | 17 - 1/2 " | 27 " | 3.95 | 2350°F/Cone 10 | 60 | 120,000 | 3/4 " | 1/8 | 3/32 | 2 | 205 |
| 18G BLANK RING | 17 - 1/2 " | 4 - 1/2 " | 0.66 | 30 | |||||||
| 2327G | 23 - 3/8 " | 27 " | 7 | 2350°F/Cone 10 | 80 | 240,000 | 3/4 " | 9/64 | #40 | 3 | 270 |
| 2331G | 23 - 3/8 " | 31 - 1/2 " | 8.15 | 2350°F/Cone 10 | 80 | 240,000 | 3/4 " | 9/64 | #40 | 3 | 318 |
| 23G BLANK RING | 23 - 3/8 " | 4 - 1/2 " | 1 | 40 | |||||||
| 2827G | 28 - 1/4 " | 27 " | 10 | 2350°F/Cone 10 | 70 | 280,000 | 3/4 " | Sep-64 | #40 | 4 | 396 |
| 2831G | 28 - 1/4 " | 31 - 1/2 " | 11.67 | 2350°F/Cone 10 | 70 | 280,000 | 3/4 " | Sep-64 | #40 | 4 | 420 |
| 28G BLANK RING | 28 - 1/4 " | 4 - 1/2 " | 1.67 | 86 | |||||||
