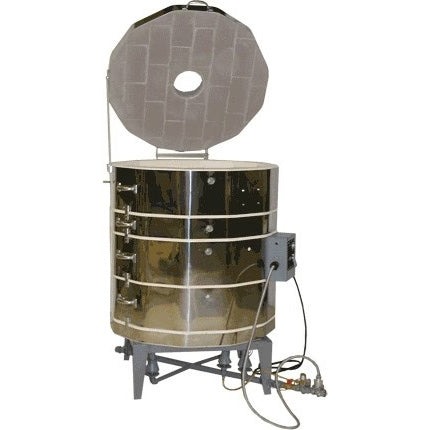

2831-OLYMPIC TORCH BEARER KILN /NATURAL GAS or PROPANE With Burners and Ignition Ring
2831G with Ignition System and Thermocouple Safety Shut-off.Model - Olympic Torchbearer 2831G Gas Kiln with Ignition System and Thermocouple Safety Shut-off.
Inside dimensions: 28 ¼ " wide x 31 ½ " deep, fires to cone 10/2350°F
Model comes with burner system, four peephole plugs, brick for covering porthole on top during reduction, instruction manual, and warranty card. The ignition system with thermocouple safety shut-off is an option and the kiln may be purchased as a Base kiln. The optional gas kiln sitter system performs like it would on an electric kiln. A pyrometric cone is used and when the cone bends it will cause the kiln sitter to mechanically shut down the kiln. Propane kilns with kiln sitters need to be located near a 120-volt receptacle.
One-year warranty.
Note: The prices shown for the Torchbearer and Raku kilns here include the Ignition Ring with Thermocouple Safety Shut-off which adds a high degree of safety. We can supply these kilns without the Ignition ring but we feel that for safety's sake these should always be installed.
- Light the multiple burner system from
- one point
- Maintain the flame on each burner
- Re-ignite any burner that may
extinguish The thermocouple safety shut-off will stop the gas flow if the flame is lost entirely.OPTIONAL FURNITURE KITFurniture Kit for 28″ Raku & Torchbearer Gas Kilns 6 each – 24″ x 12″ half-round shelves, 6 each – 3, 6, 9, 12-inch large square posts, and a 1 lb bag of kiln wash
|
|
Inside Dimension |
|
|||||||||
| Model |
Inches (Width) |
Inches (Depth) |
Cubic Feet |
Maximum Temperature |
BTU/ BUR x1,000 |
Max BTU/ Input |
Gas Line Inlet |
Orifice Size Natural Gas |
Orifice Size Propane | No. of Burners | Shipping Lbs. |
| 18 RAKU | 17 - 1/2 " | 22 - 1/2 " | 3.29 | 2350°F/Cone 10 | 60 | 120,000 | 3/4 " | 1/8 | 3/32 | 2 | 225 |
| 23 RAKU | 23 - 3/8 " | 27 " | 7 | 2350°F/Cone 10 | 80 | 240,000 | 3/4 " | 9/64 | #40 | 3 | 315 |
| 28 RAKU | 28 - 1/4 " | 27 " | 10 | 2350°F/Cone 10 | 70 | 280,000 | 3/4 " | 9/64 | #40 | 4 | 480 |
| 1827G | 17 - 1/2 " | 27 " | 3.95 | 2350°F/Cone 10 | 60 | 120,000 | 3/4 " | 1/8 | 3/32 | 2 | 205 |
| 18G BLANK RING | 17 - 1/2 " | 4 - 1/2 " | 0.66 |
|
30 | ||||||
| 2327G | 23 - 3/8 " | 27 " | 7 | 2350°F/Cone 10 | 80 | 240,000 | 3/4 " | 9/64 | #40 | 3 | 270 |
| 2331G | 23 - 3/8 " | 31 - 1/2 " | 8.15 | 2350°F/Cone 10 | 80 | 240,000 | 3/4 " | 9/64 | #40 | 3 | 318 |
| 23G BLANK RING | 23 - 3/8 " | 4 - 1/2 " | 1 |
|
40 | ||||||
| 2827G | 28 - 1/4 " | 27 " | 10 | 2350°F/Cone 10 | 70 | 280,000 | 3/4 " | Sep-64 | #40 | 4 | 396 |
| 2831G | 28 - 1/4 " | 31 - 1/2 " | 11.67 | 2350°F/Cone 10 | 70 | 280,000 | 3/4 " | Sep-64 | #40 | 4 | 420 |
| 28G BLANK RING | 28 - 1/4 " | 4 - 1/2 " | 1.67 |
|
86 | ||||||
