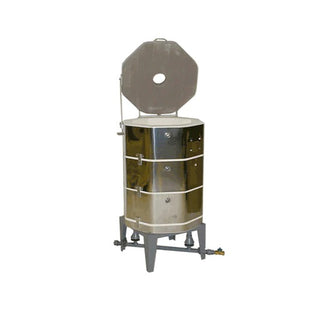

Olympic 1827-Torch Bearer Kiln / Natural Gas Or Propane With Burners And Ignition Ring
Save $376.00
SKU : OL1827G
Item Class:
POTTERY KILNS
THIS PRODUCT QUALIFIES FOR FREE SHIPPING FOR MOST LOCATIONS Availability
Shipping calculated at checkout.
HAVE QUESTIONS ? Call Us
Free Shipping (some items excluded)
Kiln & Ceramic Experts on staff
One stop shop for Ceramics Supplies
Americas Premiere Clay Maker
Ceramic Supplier since 1946
World Class Support
You are browsing ceramic kilns, gas kilns, Olympic Kilns. This is an

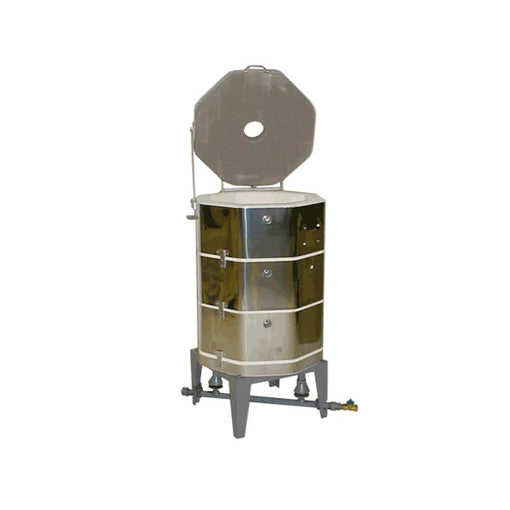

OLYMPIC 1827-TORCH BEARER KILN / NATURAL GAS or PROPANE With Burners and Ignition Ring
1827G with Ignition System and Thermocouple Safety Shut-off
Model - 1827G/Ign Syst/Propane or Natural Gas
Inside dimensions: 17 ½" wide x 27" deep, fires to cone 10/2350°F
This gas/propane kiln comes with burner system, three peephole plugs, brick for covering porthole on top during reduction, instruction manual, and warranty card. The ignition system with thermocouple safety shut-off is an option and the kiln may be purchased as a Base kiln.
One-year warranty for the Olympic 1827 raku kiln.
OLYMPIC 1827-TORCH BEARER KILN / NATURAL GAS or PROPANE With Burners and Ignition Ring
1827G with Ignition System and Thermocouple Safety Shut-off
Model - 1827G/Ign Syst/Propane or Natural Gas
Inside dimensions: 17 ½" wide x 27" deep, fires to cone 10/2350°F
This gas/propane kiln comes with burner system, three peephole plugs, brick for covering porthole on top during reduction, instruction manual, and warranty card. The ignition system with thermocouple safety shut-off is an option and the kiln may be purchased as a Base kiln.
One-year warranty for the Olympic 1827 raku kiln.
Note: The prices shown for the Torchbearer and Raku kilns here include the Ignition Ring with Thermocouple Safety Shut-off
which adds a high degree of safety. We can supply the Olympic 1827 raku kiln without the ignition ring, but we feel that for safety's sake, these should always be installed.
The price with out the ignition ring are $300 less for 28" kilns and $250 less for all others.
The ignition system is used to:
■ Light the multiple burner system from
one point
■ Maintain the flame on each burner
■ Re-ignite any burner that may
extinguish
The thermocouple safety shut-off in the Olympic 1827 raku kiln will stop the gas flow if the flame is lost entirely.
which adds a high degree of safety. We can supply the Olympic 1827 raku kiln without the ignition ring, but we feel that for safety's sake, these should always be installed.
The price with out the ignition ring are $300 less for 28" kilns and $250 less for all others.
The ignition system is used to:
■ Light the multiple burner system from
one point
■ Maintain the flame on each burner
■ Re-ignite any burner that may
extinguish
The thermocouple safety shut-off in the Olympic 1827 raku kiln will stop the gas flow if the flame is lost entirely.
| Inside Dimension | |||||||||||
| Model | Inches (Width) |
Inches (Depth) |
Cubic Feet | Maximum Temperature |
BTU/ BUR x1,000 |
Max BTU/ Input | Gas Line Inlet |
Orifice Size Natural Gas |
Orifice Size Propane | No. of Burners | Shipping Lbs. |
| 18 RAKU | 17 - 1/2 " | 22 - 1/2 " | 3.29 | 2350°F/Cone 10 | 60 | 120,000 | 3/4 " | 1/8 | 3/32 | 2 | 225 |
| 23 RAKU | 23 - 3/8 " | 27 " | 7 | 2350°F/Cone 10 | 80 | 240,000 | 3/4 " | 9/64 | #40 | 3 | 315 |
| 28 RAKU | 28 - 1/4 " | 27 " | 10 | 2350°F/Cone 10 | 70 | 280,000 | 3/4 " | 9/64 | #40 | 4 | 480 |
| 1827G | 17 - 1/2 " | 27 " | 3.95 | 2350°F/Cone 10 | 60 | 120,000 | 3/4 " | 1/8 | 3/32 | 2 | 205 |
| 18G BLANK RING | 17 - 1/2 " | 4 - 1/2 " | 0.66 | 30 | |||||||
| 2327G | 23 - 3/8 " | 27 " | 7 | 2350°F/Cone 10 | 80 | 240,000 | 3/4 " | 9/64 | #40 | 3 | 270 |
| 2331G | 23 - 3/8 " | 31 - 1/2 " | 8.15 | 2350°F/Cone 10 | 80 | 240,000 | 3/4 " | 9/64 | #40 | 3 | 318 |
| 23G BLANK RING | 23 - 3/8 " | 4 - 1/2 " | 1 | 40 | |||||||
| 2827G | 28 - 1/4 " | 27 " | 10 | 2350°F/Cone 10 | 70 | 280,000 | 3/4 " | Sep-64 | #40 | 4 | 396 |
| 2831G | 28 - 1/4 " | 31 - 1/2 " | 11.67 | 2350°F/Cone 10 | 70 | 280,000 | 3/4 " | Sep-64 | #40 | 4 | 420 |
| 28G BLANK RING | 28 - 1/4 " | 4 - 1/2 " | 1.67 | 86 | |||||||
