Olympic 23" Raku Kiln /Natural Gas Or Propane With Burners And Ignition Ring
Save $751.00
SKU : OL23RAKU
Item Class:
RAKU KILNS
THIS PRODUCT QUALIFIES FOR FREE SHIPPING FOR MOST LOCATIONS Availability
Shipping calculated at checkout.
HAVE QUESTIONS ? Call Us
Free Shipping (some items excluded)
Kiln & Ceramic Experts on staff
One stop shop for Ceramics Supplies
Americas Premiere Clay Maker
Ceramic Supplier since 1946
World Class Support
You are browsing gas kilns and raku kilns, Olympic Kilns. This is a

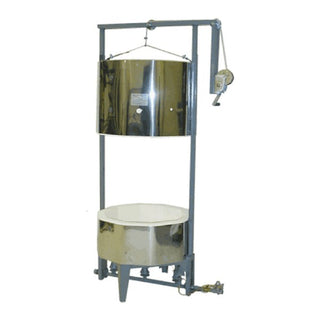

OLYMPIC 23" RAKU KILN /NATURAL GAS or PROPANE With Burners and Ignition Ring
23 Raku with Ignition System and Thermocouple Safety Shut-off
Model - 23 Raku/IGN Syst/Propane or Natural Gas
Inside dimensions: 23 3/8 " wide x 27" deep, fires to cone 10/2350°F
Model comes with frame welded to firing chamber, three peephole plugs, brick for covering porthole on top during reduction, instruction manual, and warranty card. The ignition system with thermocouple safety shut-off is an option and the kiln may be purchased as a Base kiln. One-year warranty.
Note: The prices shown for the Torchbearer and Raku kilns here include the Ignition Ring with Thermocouple Safety Shut-off
which adds a high degree of safety.
The ignition system is used to:
Optional furniture kit:
6 – 19” x 9” x 1” half round shelves, 6 ea – 3, 6, 9, 12 inch large square posts, 1 lb bag kiln wash, gloves, raku tongs
OLYMPIC 23" RAKU KILN /NATURAL GAS or PROPANE With Burners and Ignition Ring
23 Raku with Ignition System and Thermocouple Safety Shut-off
Model - 23 Raku/IGN Syst/Propane or Natural Gas
Inside dimensions: 23 3/8 " wide x 27" deep, fires to cone 10/2350°F
Model comes with frame welded to firing chamber, three peephole plugs, brick for covering porthole on top during reduction, instruction manual, and warranty card. The ignition system with thermocouple safety shut-off is an option and the kiln may be purchased as a Base kiln. One-year warranty.
Note: The prices shown for the Torchbearer and Raku kilns here include the Ignition Ring with Thermocouple Safety Shut-off
which adds a high degree of safety.
The ignition system is used to:
- Light the multiple burner system from one point
- Maintain the flame on each burner
- Re-ignite any burner that may extinguish
Optional furniture kit:
6 – 19” x 9” x 1” half round shelves, 6 ea – 3, 6, 9, 12 inch large square posts, 1 lb bag kiln wash, gloves, raku tongs
| Inside Dimension | |||||||||||
| Model | Inches (Width) |
Inches (Depth) |
Cubic Feet | Maximum Temperature |
BTU/ BUR x1,000 |
Max BTU/ Input | Gas Line Inlet |
Orifice Size Natural Gas |
Orifice Size Propane | No. of Burners | Shipping Lbs. |
| 18 RAKU | 17 - 1/2 " | 22 - 1/2 " | 3.29 | 2350°F/Cone 10 | 60 | 120,000 | 3/4 " | 1/8 | 3/32 | 2 | 225 |
| 23 RAKU | 23 - 3/8 " | 27 " | 7 | 2350°F/Cone 10 | 80 | 240,000 | 3/4 " | 9/64 | #40 | 3 | 315 |
| 28 RAKU | 28 - 1/4 " | 27 " | 10 | 2350°F/Cone 10 | 70 | 280,000 | 3/4 " | 9/64 | #40 | 4 | 480 |
| 1827G | 17 - 1/2 " | 27 " | 3.95 | 2350°F/Cone 10 | 60 | 120,000 | 3/4 " | 1/8 | 3/32 | 2 | 205 |
| 18G BLANK RING | 17 - 1/2 " | 4 - 1/2 " | 0.66 | 30 | |||||||
| 2327G | 23 - 3/8 " | 27 " | 7 | 2350°F/Cone 10 | 80 | 240,000 | 3/4 " | 9/64 | #40 | 3 | 270 |
| 2331G | 23 - 3/8 " | 31 - 1/2 " | 8.15 | 2350°F/Cone 10 | 80 | 240,000 | 3/4 " | 9/64 | #40 | 3 | 318 |
| 23G BLANK RING | 23 - 3/8 " | 4 - 1/2 " | 1 | 40 | |||||||
| 2827G | 28 - 1/4 " | 27 " | 10 | 2350°F/Cone 10 | 70 | 280,000 | 3/4 " | Sep-64 | #40 | 4 | 396 |
| 2831G | 28 - 1/4 " | 31 - 1/2 " | 11.67 | 2350°F/Cone 10 | 70 | 280,000 | 3/4 " | Sep-64 | #40 | 4 | 420 |
| 28G BLANK RING | 28 - 1/4 " | 4 - 1/2 " | 1.67 | 86 | |||||||
