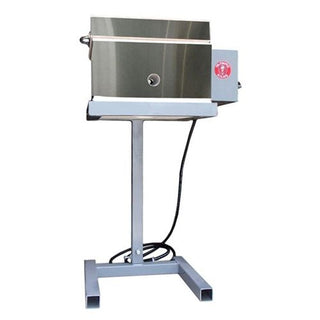

Olympic HB86P Vitrigraph Kiln
Save $221.00
SKU : OLHB86V
Item Class:
GLASS KILNS
THIS PRODUCT QUALIFIES FOR FREE SHIPPING FOR MOST LOCATIONS Availability
Shipping calculated at checkout.
HAVE QUESTIONS ? Call Us
Free Shipping (some items excluded)
Kiln & Ceramic Experts on staff
One stop shop for Ceramics Supplies
Americas Premiere Clay Maker
Ceramic Supplier since 1946
World Class Support
Hot Box 86 equipped with pyrometer and infinite switch
Model - HB86P Vitrigraph 120 volt Inside dimensions of kiln: 8" x 8" wide x 6.5" deep, fires to cone 10/2350°F; with adjustable stand ranging in height 23" to 33" tall.
The HB86P Vitrigraph comes with 2 floors, 1 fiber & 1 cordierite - both floors with holes for stringers to flow through. A brick floor for firing the kiln during regular use slumping, fusing, jewelry making, testing, etc. can be purchased separately.
This electric model comes with adjustable stand, two peephole plugs, instruction manual, and warranty card. One-year warranty.
120 volt models come equipped with pilot light, metal stand, stainless steel jacket, and pyrometer and infinite switch. Options include upgrading to the 3 key digital Bartlett controller for ramp-hold user programs and multiple features including delay start, preheat and many more for precise firings every time .
| Model | HB86E | Wiring Specifications |
|---|---|---|
| Equipped with Lid Lift Assist | N/A | 120 Volts |
| Inside Chamber Dimensions w x d x h (inches) | 8 x 8 x 6.5 | 15 Amps |
| Cubic Feet | .24 | 1800 Watts |
| Outside Dimensions with Stand or Frame w x d x h (inches) | 17.5 x 13 x 16.5 | 20 Amp Breaker Required |
| Brick Thickness | 2.5” | Plug Configuration: NEMA 5-15 |
| Maximum Temperature | Cone 10 - 2350°F/1288°C | Copper Wire Size: #12,#10 if circuit is longer than 40 ft |
| Kiln Stand | Base which holds Kiln 14" x 14" wide, Stand Base14.5" wide x 14" deep x 23"-33" high | |
| Est Ship Wt | Kiln 55 lbs, Stand 30 lbs |
