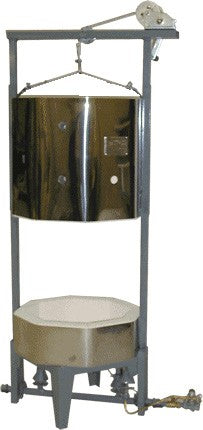

OLYMPIC 18" RAKU KILN /NATURAL GAS or PROPANE
With Burners and Ignition Ring18
Raku with Ignition System and
Thermocouple Safety Shut-off
Model - 18 Raku/IGN Syst/Propane
or Natural Gas
Inside dimensions: 17 ½ " wide
x 22 ½" deep, fires
to cone 10/2350° F
Model comes with frame welded
to firing chamber, two peephole
plugs, brick for covering porthole
on top during reduction, instruction
manual, and warranty card. The
ignition system with thermocouple
safety shut-off is included here. One-year warranty.
Note: The prices shown for the Torchbearer and Raku kilns here include the Ignition Ring with Thermocouple Safety Shut-offwhich adds a high degree of safety.
The ignition system is used to:- Light the multiple burner system from one point
- Maintain the flame on each burner
- Re-ignite any burner that may extinguish
The thermocouple safety shut-off will stop the gas flow if the flame is lost entirely.
Quick Overview
Olympic Raku & Torchbearer gas kilns bisque, high fire (cone 10), reduce, and raku. Olympic updraft gas kilns are constructed from durable firebrick and are equipped with venturi burner systems to ensure even temperature firings.
Olympic Raku gas kilns are especially designed for raku work by retaining heat in the firing chamber when elevated by the turn of a hand winch, allowing easy access, while trapping the heat in the kiln and away from the operator.
Today potters can create the ancient Japanese technique, raku and its unique beauty, metallic luster and colors with an Olympic Raku kiln. The raku process involves reducing (starving the oxygen) the glazed raku pottery in combustible materials such as leaves, sawdust, newspaper, etc. When the pieces are ready to take out of the kiln, they are placed in galvanized trash containers with combustible materials and covered. Once the pieces are cooled down, they are removed from the containers, washed and reveal the rich warm effects of raku.
Models can be purchase with burners only or with the option of a burner system which includes an ignition to light multiple burners at one point, maintain the flame on each burner and re-ignite any burner that may extinguish. The thermocouple safety shut-off will stop the gas flow if the flame is lost entirely. Olympic Raku and Torchbearer models come with the frame welded to the firing chamber (Rakus) or with the burners welded onto the kiln stand (Torchbearers), peephole plugs, brick for covering the porthole on top of the kiln lid or chamber during reduction, instruction manual, and warranty card. One-year Limited Kiln warranty.
|
|
Inside Dimension |
|
|||||||||
| Model |
Inches (Width) |
Inches (Depth) |
Cubic Feet |
Maximum Temperature |
BTU/ BUR x1,000 |
Max BTU/ Input |
Gas Line Inlet |
Orifice Size Natural Gas |
Orifice Size Propane | No. of Burners | Shipping Lbs. |
| 18 RAKU | 17 - 1/2 " | 22 - 1/2 " | 3.29 | 2350°F/Cone 10 | 60 | 120,000 | 3/4 " | 1/8 | 3/32 | 2 | 225 |
| 23 RAKU | 23 - 3/8 " | 27 " | 7 | 2350°F/Cone 10 | 80 | 240,000 | 3/4 " | 9/64 | #40 | 3 | 315 |
| 28 RAKU | 28 - 1/4 " | 27 " | 10 | 2350°F/Cone 10 | 70 | 280,000 | 3/4 " | 9/64 | #40 | 4 | 480 |
| 1827G | 17 - 1/2 " | 27 " | 3.95 | 2350°F/Cone 10 | 60 | 120,000 | 3/4 " | 1/8 | 3/32 | 2 | 205 |
| 18G BLANK RING | 17 - 1/2 " | 4 - 1/2 " | 0.66 |
|
30 | ||||||
| 2327G | 23 - 3/8 " | 27 " | 7 | 2350°F/Cone 10 | 80 | 240,000 | 3/4 " | 9/64 | #40 | 3 | 270 |
| 2331G | 23 - 3/8 " | 31 - 1/2 " | 8.15 | 2350°F/Cone 10 | 80 | 240,000 | 3/4 " | 9/64 | #40 | 3 | 318 |
| 23G BLANK RING | 23 - 3/8 " | 4 - 1/2 " | 1 |
|
40 | ||||||
| 2827G | 28 - 1/4 " | 27 " | 10 | 2350°F/Cone 10 | 70 | 280,000 | 3/4 " | Sep-64 | #40 | 4 | 396 |
| 2831G | 28 - 1/4 " | 31 - 1/2 " | 11.67 | 2350°F/Cone 10 | 70 | 280,000 | 3/4 " | Sep-64 | #40 | 4 | 420 |
| 28G BLANK RING | 28 - 1/4 " | 4 - 1/2 " | 1.67 |
|
86 | ||||||
