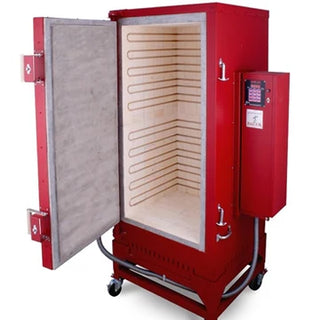

Sheffield Pottery Bull Elk Studio:
Front-Loading
Kiln Package
Available for 240/ single phase or 208/3 phase wiring: same price
Includes Sentinel Touch-Screen Controller, 3 Zone type K thermocouples, Door Gasket,Door Safety Shut Off, 120 V Orton Vent, 19” Stand with Casters, and Sheffield Pottery Red
16.67 Cubic feet, Sheffield Pottery Bull Elk Front Loading Kiln
By Paragon Industries :
Exclusively for Sheffie Pottery
240/
Single or 208/3 : (other wiring available)
Sentinel Touch
3 Zone type K
Door Gasket
Door Safety Shut Off
120 V Vent
19” Stand with Casters
Sheffield Pottery Red
The Sheffield Pottery Bull Elk Front Loading Kiln is a cone 10 kiln designed for pottery and ceramic studios. This school and commercial kiln is suitable for glass arts as well as metal heat treating applications. And considering its features, it is surprisingly affordable.
| Sheffield Bull Elk Kilns Comparison | Studio | Pro |
| Controller | Genesis | Genesis |
| Zones | 3 | 3 |
| Thermocouple Type | K | S |
| Stand with Casters | 19" | 19" |
| Door Elements | No | Yes |
| Safety Door Shut Off | Yes | Yes |
| AOP outlet for Vent Integration | No | Yes |
| Orton Vent | 120v | 240v |
| Interior Cubic Feet | 16.67 | 16.67 |
| Default Wiring Configuration* | 240/1 | 208/3 |
| Door Gasket | Yes | Yes |
| Fits through 36" Door ** | Yes | Yes |
| 4.5" thick Floor | Yes | Yes |
| Top Temp | 2350 F | 2350F |
| *Other Configurations Available | ||
| ** Fit's through 36" if handles and element cover removed |
Fits through 36" door!Can fit through 34" by taking off handles and back element cover.
Includes door safety shutoff.
The front loading kiln includes a 19” stand with casters. The stand raises the kiln firebrick bottom hearth to 24”.
The floor is 4.5" of firebrick.
The 4" walls are very well insulated. They are 3" of firebrick and 1" of super insulating block insulation.
200, 208, 220 volts, single or 3 phase: same price as 240 volts.
The cone 10 kiln interior is 16.67 cubic feet: 24”W x 24”D x 50”H
The external kiln height includes the 19” stand with casters.
Door opens a few degrees past 90.
Extra insulation saves energy and lengthens cooling. The 4” thick walls, top and door are made of 3” firebrick backed by 1” of ceramic fiber block insulation. The floor is 4 ½” thick firebrick. The extra insulation not only saves energy but also cools the kiln slowly without having to turn the elements back on. This gives the micro-crystalline structure and color of the glaze sufficient time for full development. Cool slowly to achieve dramatic shifts in glaze color such as iron reds and enjoy the richer look of gas firing. The ample power and extra insulation of this commercial kiln results in long element life, because the elements do not “struggle” to reach high temperatures. Dropped, recessed grooves seat the industrial-gauge elements.
The elements are “tuned,” which means hotter elements are placed in areas of the firing chamber that need more heat. This results in superior heat distribution.
The Sentry 2.0 digital controller is standard on the Sheffield Pottery Bull Elk front loading kiln. Results are repeatable from one firing to the next with astounding accuracy, making this kiln perfect for schools. The controller continually monitors the firing with the wifi enable Sentinel Touch Screen Controller.
Do you ever wonder how much electricity your kiln uses? The digital controller will figure this for you; merely program the kiln’s wattage and your cost of electricity into the controller. Learn to conserve energy by experimenting with firing speed, load density, etc.
The Type-K thermocouple, hermetically sealed for accuracy, is standard.
Long-lasting mercury relays power the elements. A bank of built-in NEC/UL compliant high-amperage fuses protects the kiln and circuit wiring. Potters who struggle with top-loading kilns will enjoy the front-loading Sheffield Pottery Bull Elk Kiln. The door swings open wide on a heavy hinges with sealed bearings.
The ventilated switch box is generously louvered for air circulation for the long life of the electrical components. Yet dust is kept to a minimum. Cone 10 Front Loading Kiln Features
- Saves electricity with extra insulation
- Cone 10, 2350°F
- 3” insulating firebrick and 1” non-organic block insulation in walls, top and door: 4” total thickness
- 4 ½” thick firebrick bottom
- 16.67 cubic foot Interior: 24" wide x 24" deep x 50" tall
- Long-lasting mercury relays
- Type K thermocouple with ¼” sheath
- Case temperature at cone 10: 170°F (compared to 400-500°F for standard firebrick kilns)
- Two tapered peepholes in side
- UL/CUL & NEC compliant fuses for safety
- Available in 200, 208, 220, 240, 480 v, 1 & 3 phase
- Proportional power elements for more even heating
The Optional Furniture Kit (not included)
The furniture kit consists of carefully selected fireclay shelves and posts for this commercial and school kiln. When estimating the price of the kiln, include the cost of furniture. The furniture allows you to stack multiple layers of ware. Without it, you could fire only the ware that would fit on the kiln bottom.
Optional Furniture Kit contains:
2 C-30 Shelf (22” x 22” x 1”)
8 - C30H ½ Shelves (22” x 11” x 1”)
1 1/2” wide Square Posts, 16 each of - 4”, 6”, 8” lengths 2 lb. Bag Kiln Wash
Shipping:
1,350 lb. This includes the weight of the 14” stand.
Crate 52”W x 52”D x 80”H
Furniture kit: 156 lb.
Amperage
|
240 volts, single phase 112 amps
|
